Details

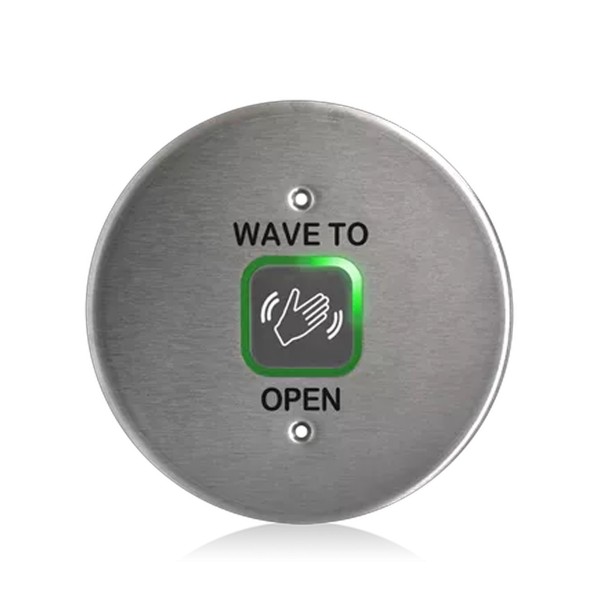

BEA Touchless Magic "Wave to Open" Actuator 6" Round Plate (Text & Logo, Stainless Steel) - 10MS41-R

Key Features:

• BEA MAGIC Switch touchless actuator provides hands-free activation of automatic doors for improved hygiene and accessibility
• Features a 6-inch round stainless steel faceplate with "Wave to Open" text and logo for universal visibility and compliance
• Employs microwave Doppler radar sensing technology to detect movement, triggering activation without contact
• Adjustable detection range between 4 and 24 inches ensures accurate operation based on the environment
• Configurable output hold time from 0.5 to 30 seconds allows precise door activation control
• Equipped with LED illumination and optional audible feedback for enhanced user awareness and interaction
• IP55-rated protection from dust and moisture, upgradeable to IP65 for outdoor or industrial use

Specifications:

• Technology: Microwave Doppler radar sensor
• Detection Range: Adjustable 4 to 24 inches
• Frequency: 24.125 GHz, radiated power below 5 mW/cm sq
• Power Supply: 12 to 24 VAC ~10% or 12 to 24 VDC +30%/-10%
• Relay Output: Form C relay, 1 A at 125 VAC or 60 VDC
• Output Hold Time: Adjustable from 0.5 to 30 seconds
• Power Consumption: Less than 1.5 W
• Operating Temperature: -4 F to 131 F (-20 C to +55 C)
• Enclosure Rating: IP55 (upgradable to IP65)
• Faceplate Dimensions: 6-inch round stainless steel plate
• Faceplate Material: Stainless steel with "Wave to Open" text and logo
