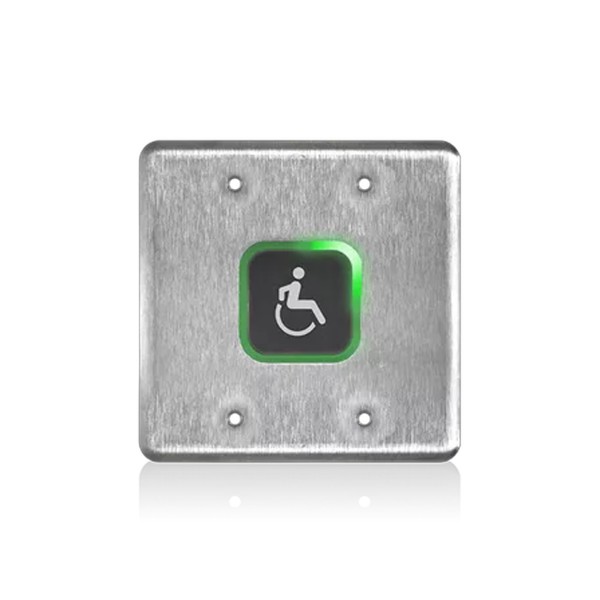

BEA Touchless Magic Wave to Open Actuator Double Gang (Accessibility Logo Only, Stainless Steel) - 10MS41-DPAL

Key Features:

• BEA MAGIC Switch touchless actuator enables hands-free activation for automatic doors, promoting cleanliness and accessibility
• Constructed with a stainless steel double-gang faceplate featuring the universal accessibility logo for ADA compliance
• Microwave Doppler radar sensing detects motion within an adjustable 4 to 24" range for precise response
• Configurable relay hold time from 0.5 to 30 seconds accommodates various door control requirements
• LED illumination and optional audible feedback enhance visibility and usability in all areas
• IP55-rated for resistance to dust and moisture, suitable for commercial, healthcare, and industrial settings

Specifications:

• Technology: Microwave Doppler radar motion detection
• Detection Range: Adjustable between 4 and 24"
• Frequency: 24.125 GHz, power density under 5 mW/cm sq.
• Power Supply: 12 to 24 VAC ~10% or 12 to 24 VDC +30%/-10%
• Relay Output: Form C relay, rated 1 A at 125 VAC or 60 VDC
• Output Hold Time: Adjustable from 0.5 to 30 seconds
• Power Consumption: Under 1.5 W
• Operating Temperature: -4 F to 131 F (-20 C to +55 C)
• Enclosure Rating: IP55 (upgradeable to IP65 with sealing)
• Faceplate Dimensions: 4.5" high x 4.5" wide x approximately 1 1/8"
• Faceplate Material: Stainless steel with accessibility logo engraving
