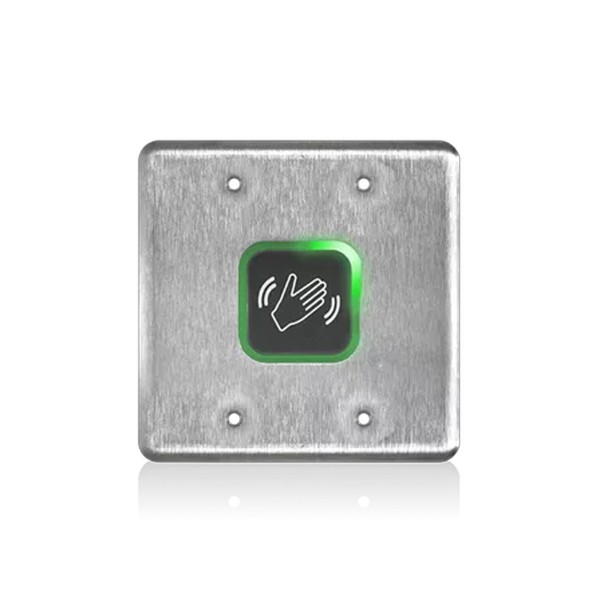

BEA Touchless Magic Wave to Open Actuator Double Gang (Logo Only, Stainless Steel) - 10MS41-DPHL

Key Features:

• BEA MAGIC Switch touchless actuator designed for hygienic, hands-free activation of automatic doors in commercial and healthcare environments
• Stainless steel double-gang faceplate features only the BEA logo for a clean and professional look
• Microwave Doppler radar sensing provides adjustable detection from 4 to 24 inches for reliable activation range control
• Configurable output hold time from 0.5 to 30 seconds allows users to match door open duration to application needs
• Includes LED illumination and optional audible feedback to indicate activation and status clearly
• IP55-rated for dust and moisture protection; can reach IP65 rating with proper sealing for outdoor or wash-down areas

Specifications:

• Technology: Microwave Doppler radar sensor
• Detection Range: Adjustable from 4 to 24 inches
• Frequency: 24.125 GHz, output power density below 5 mW/cm sq
• Power Supply: 12 to 24 VAC ~10% or 12 to 24 VDC +30%/-10%
• Relay Output: Form C relay, rated 1 A at 125 VAC or 60 VDC
• Output Hold Time: Adjustable from 0.5 to 30 seconds
• Power Consumption: Under 1.5 W
• Operating Temperature: -4 F to 131 F (-20 C to +55 C)
• Enclosure Rating: IP55 (upgradeable to IP65 with sealing)
• Faceplate Dimensions: 4.5 inches high x 4.5 inches wide x approximately 1 1/8 inches deep
• Faceplate Material: Stainless steel, double-gang plate with logo only
