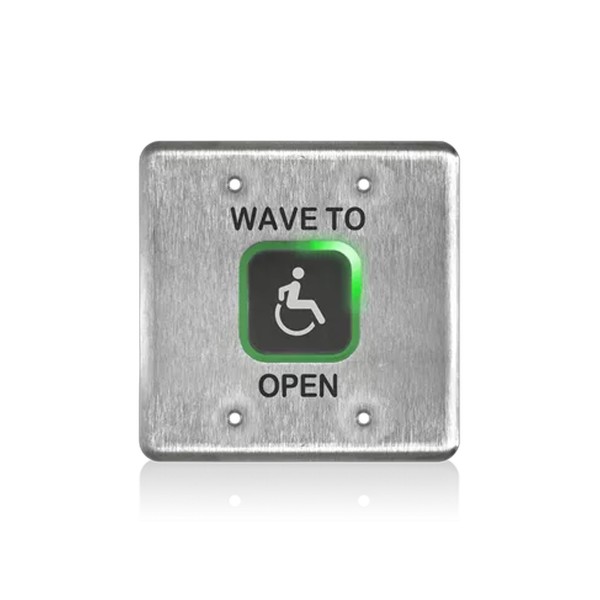

BEA Touchless Magic "Wave to Open" Actuator Double Gang (Text & Accessibility Logo, Stainless Steel) - 10MS41-DA

Key Features:

• Touchless MAGIC Switch actuator designed for hands-free activation of automatic doors in high-traffic and sanitary environments
• Constructed with a stainless steel double-gang faceplate featuring "Wave to Open" text and ADA accessibility logo for universal identification
• Microwave Doppler radar sensing technology detects motion within an adjustable 4 to 24 inch range for accurate operation
• Selectable relay hold time from 0.5 to 30 seconds for customized door control timing
• Illuminated LED ring with optional audible feedback for enhanced visibility and user confirmation
• IP55-rated enclosure ensures dependable performance in commercial, industrial, and healthcare facilities

Specifications:

• Technology: Microwave Doppler radar motion detection
• Detection Range: Adjustable between 4 and 24 inches
• Frequency: 24.125 GHz, power density under 5 mW/cm sq
• Power Supply: 12 to 24 VAC ~10% or 12 to 24 VDC +30%/-10%
• Relay Output: Form C relay rated 1 A at 125 VAC / 60 VDC
• Output Hold Time: Adjustable 0.5 to 30 seconds
• Power Consumption: Less than 1.5 W
• Operating Temperature: -4 F to 131 F (-20 C to +55 C)
• Enclosure Rating: IP55 (can reach IP65 with sealing)
• Faceplate Dimensions: 4.5 inches high x 4.5 inches wide x approximately 1 1/8 inches deep
• Faceplate Material: Stainless steel, double-gang configuration
