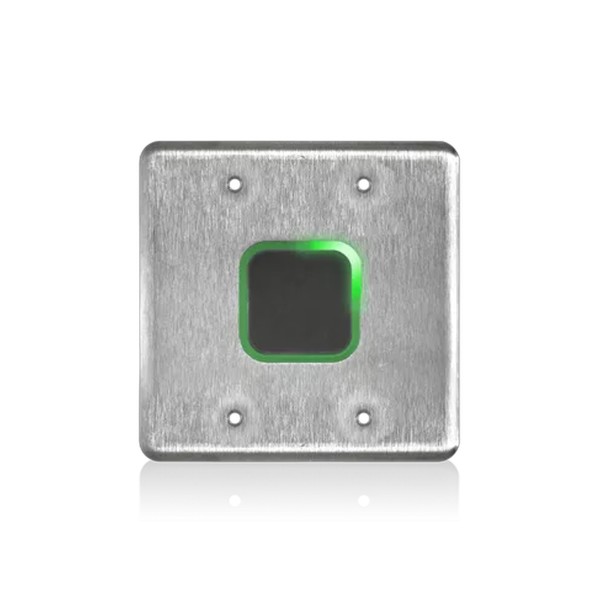

BEA Touchless Magic "Wave to Open" Actuator Double Gang (Stainless Steel) - 10MS41-DP

Key Features:

• Hands-free touchless actuator from the BEA MAGIC Switch series designed for hygienic and ADA-compliant door activation
• Double-gang stainless steel faceplate provides enhanced durability and a modern appearance for commercial or industrial installations
• Microwave Doppler radar technology detects motion from 4 to 24", offering adjustable range for precise performance
• Selectable output hold time from 0.5 to 30 seconds allows customized activation timing for various door systems
• Available LED illumination and optional audible signal for enhanced visibility and user confirmation
• Rated IP55 for protection against dust and moisture; can reach IP65 when sealed, ideal for high-traffic or wash-down areas

Specifications:

• Technology: Microwave Doppler radar sensor
• Detection Range: Adjustable between 4 and 24"
• Frequency: 24.125 GHz, under 5 mW/cm sq.
• Power Supply: 12 to 24 VAC ~10% or 12 to 24 VDC +30%/-10%
• Output Type: Form C relay rated 1 A at 125 VAC or 60 VDC
• Output Hold Time: 0.5 to 30 seconds (adjustable)
• Power Consumption: Less than 1.5 W
• Operating Temperature: -4 F to 131 F (-20 C to +55 C)
• Enclosure Rating: IP55 (up to IP65 with sealing)
• Faceplate Dimensions: 4.5" high x 4.5" wide x approximately 1 1/8" thick
• Faceplate Material: Stainless steel, double-gang style
