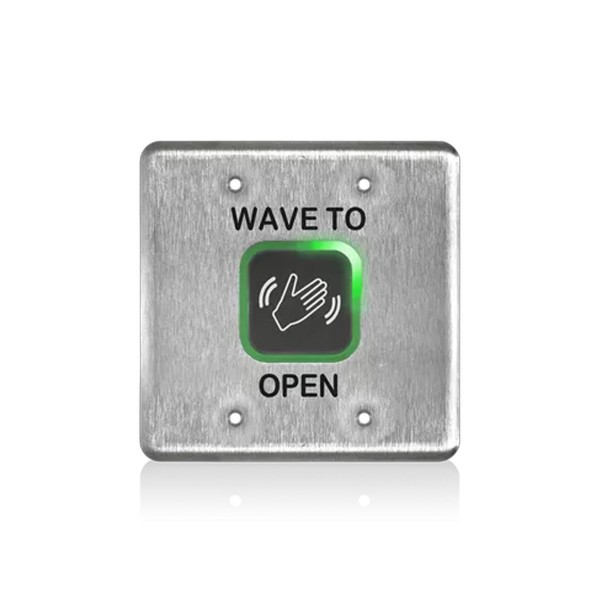

BEA Touchless Magic "Wave to Open" Actuator Double Gang (Text & Logo, Stainless Steel) - 10MS41-D

Key Features:

• Stainless steel touchless actuator from the MAGIC Switch family designed for hygienic door activation
• Microwave Doppler radar motion detection with an adjustable sensing zone from 4 to 24 inches
• Configurable output hold time from 0.5 to 30 seconds to suit various door control requirements
• Illuminated ring and audible alert options, including silent mode, for enhanced visibility and flexibility
• Durable IP55-rated enclosure (can reach IP65 with sealant) designed for wash-down and high-traffic environments

Specifications:

• Technology: Microwave Doppler radar
• Radiated Frequency: 24.125 GHz with power density less than 5 mW/cm sq
• Detection Mode: Motion (bidirectional)
• Detection Range (adjustable): 4 to 24 inches
• Supply Voltage: 12-24 VAC ~10% or 12-24 VDC +30%/-10%.
• Output: Relay with change-over contact, maximum voltage 60 VDC / 125 VAC; maximum current 1 A resistive; maximum switching power 30 W DC / 60 VA AC
• Output Hold Time: 0.5 to 30 seconds
• Power Consumption: Under 1.5 W
• Operating Temperature Range: -4 F to 131 F
• Enclosure Rating: IP55 (upgradeable to IP65 with sealant).
• Faceplate Dimensions (Double Gang): 4.5" high x 4.5" wide x Approx. 1 " thick
• Material: Stainless steel faceplate.
