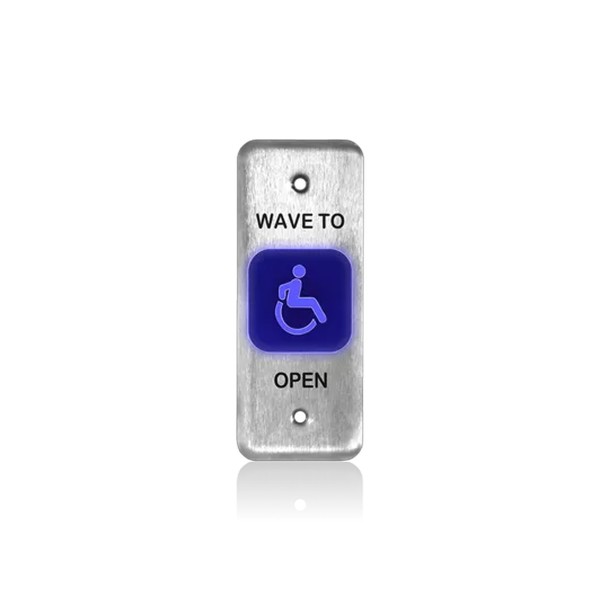

BEA Touchless Magic "Wave to Open" Actuator Jamb Plate (Text & Accessibility Logo, Stainless Steel) - 10MS41-JA

Key Features:

• Touchless BEA MAGIC Switch actuator provides hands-free activation for automatic doors, enhancing hygiene and accessibility
• Constructed with a stainless steel jamb plate featuring both text and accessibility logo for ADA-compliant environments
• Microwave Doppler radar sensing technology enables motion-based activation with adjustable detection range from 4 to 24 inches
• Relay hold time can be adjusted from 0.5 to 30 seconds to suit various door timing requirements
• Built-in LED and optional audible feedback enhance user visibility and awareness upon activation
• Rated IP55 for protection against dust and moisture, with the option to upgrade to IP65 sealing for harsher settings

Specifications:

• Technology: Microwave Doppler radar detection
• Detection Range: Adjustable between 4 and 24 inches
• Frequency: 24.125 GHz with power density under 5 mW/cm sq
• Power Supply: 12 to 24 VAC ~10% or 12 to 24 VDC +30%/-10%
• Relay Output: Form C relay, rated 1 A at 125 VAC or 60 VDC
• Output Hold Time: Adjustable from 0.5 to 30 seconds
• Power Consumption: Less than 1.5 W
• Operating Temperature: -4 F to 131 F (-20 C to +55 C)
• Enclosure Rating: IP55 (upgradeable to IP65)
• Faceplate Dimensions: 1.75 inches wide x 4.5 inches high x approximately 1 1/8 inches deep
• Faceplate Material: Stainless steel jamb plate with text and accessibility logo
