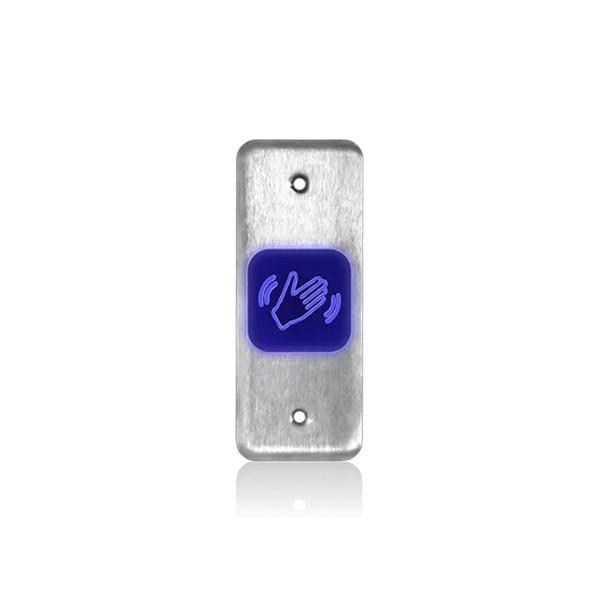

BEA Touchless Magic Wave to Open Actuator Jamb Plate (Logo Only, Stainless Steel) - 10MS41-JPHL

Key Features:

• BEA MAGIC Switch actuator enables completely touchless activation for automatic doors, improving hygiene and accessibility
• Equipped with a stainless steel jamb plate featuring a logo-only design, providing a modern appearance suitable for any setting
• Utilizes microwave Doppler radar sensing technology to detect motion for activation without physical contact
• Detection range can be adjusted from 4 to 24 inches to suit various environments and mounting positions
• Configurable relay hold time between 0.5 and 30 seconds allows flexible control of activation duration
• Includes visual LED indication and optional audible feedback to confirm sensor activation
• IP55-rated for dust and moisture protection, upgradeable to IP65 with sealing kit for outdoor or washdown areas

Specifications:

• Technology: Microwave Doppler radar detection
• Detection Range: Adjustable from 4 to 24 inches
• Frequency: 24.125 GHz, emission power under 5 mW/cm sq
• Power Supply: 12 to 24 VAC ~10% or 12 to 24 VDC +30%/-10%
• Relay Output: Form C relay rated 1 A at 125 VAC or 60 VDC
• Output Hold Time: Adjustable 0.5 to 30 seconds
• Power Consumption: Less than 1.5 W
• Operating Temperature: -4 F to 131 F (-20 C to +55 C)
• Enclosure Rating: IP55 (can reach IP65 with optional sealing)
• Faceplate Dimensions: 1.75 inches wide x 4.5 inches high x approximately 1 1/8 inches deep
• Faceplate Material: Stainless steel jamb plate with logo only
