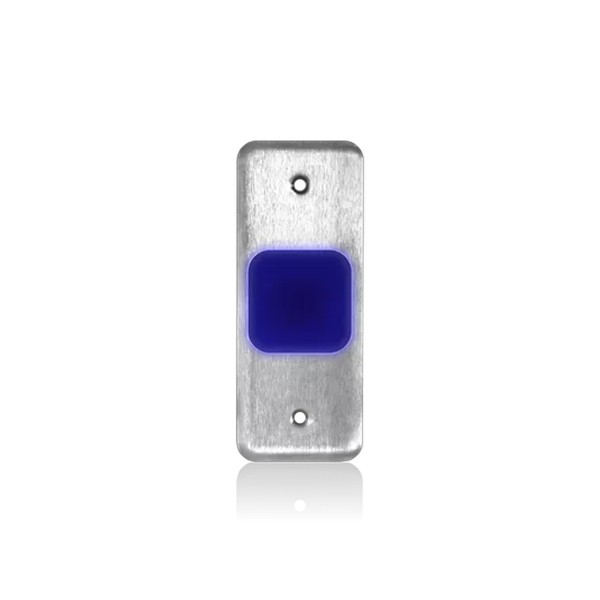

BEA Touchless Magic "Wave to Open" Actuator Jamb Plate (Stainless Steel) - 10MS41-JP

Key Features:

• BEA MAGIC Switch touchless actuator for hygienic and contact-free operation of automatic doors
• Constructed with a stainless steel jamb plate, designed for sleek, modern installations in commercial and healthcare environments
• Microwave Doppler radar technology detects motion within an adjustable range of 4 to 24 inches, ensuring accurate response without false triggers
• Customizable output hold time between 0.5 and 30 seconds allows control over activation duration
• Built-in LED illumination and optional audible feedback provide clear activation status to users
• Rated IP55 for dust and moisture protection, upgradeable to IP65 with sealing accessories for outdoor or industrial applications

Specifications:

• Technology: Microwave Doppler radar sensor
• Detection Range: Adjustable from 4 to 24 inches
• Frequency: 24.125 GHz with output density under 5 mW/cm sq
• Power Supply: 12 to 24 VAC ~10% or 12 to 24 VDC +30%/-10%
• Relay Output: Form C relay rated 1 A at 125 VAC or 60 VDC
• Output Hold Time: Adjustable from 0.5 to 30 seconds
• Power Consumption: Less than 1.5 W
• Operating Temperature: -4 F to 131 F (-20 C to +55 C)
• Enclosure Rating: IP55 (can reach IP65 with proper sealing)
• Faceplate Dimensions: 1.75 inches wide x 4.5 inches high x approximately 1 1/8 inches deep
• Faceplate Material: Stainless steel jamb plate
