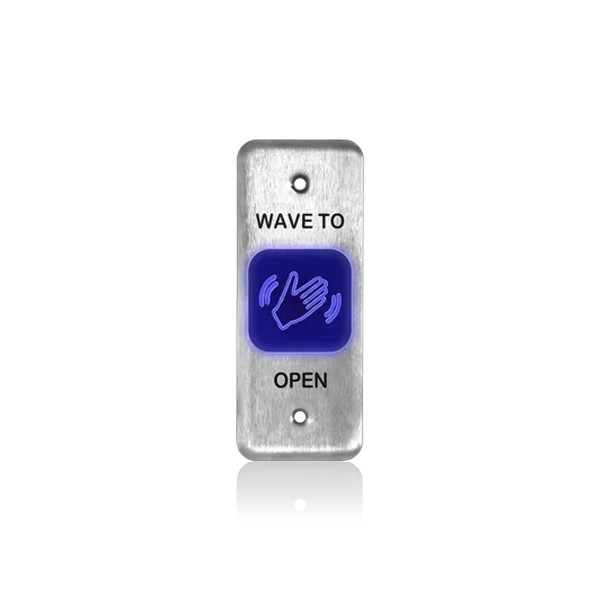

BEA Touchless Magic "Wave to Open" Actuator Jamb Plate (Text & Logo, Stainless Steel) - 10MS41-J

Key Features:

• Touchless BEA MAGIC Switch actuator designed for hygienic, hands-free operation of automatic doors
• Stainless steel jamb plate with both text and logo, suitable for ADA-compliant accessibility and modern environments
• Utilizes microwave Doppler radar technology for motion detection, ensuring reliable activation without physical contact
• Adjustable sensing range from 4 to 24 inches provides flexibility for various installation distances and conditions
• Programmable relay hold time between 0.5 and 30 seconds allows for customized door open duration
• LED illumination and optional audible feedback enhance visibility and user awareness in low-light or high-traffic areas
• Rated IP55 for moisture and dust protection, with the option to reach IP65 for enhanced sealing in harsher environments

Specifications:

• Technology: Microwave Doppler radar sensing
• Detection Range: Adjustable from 4 to 24 inches
• Frequency: 24.125 GHz, radiated power less than 5 mW/cm sq
• Power Supply: 12 to 24 VAC ~10% or 12 to 24 VDC +30%/-10%
• Relay Output: Form C relay rated 1 A at 125 VAC or 60 VDC
• Output Hold Time: Adjustable from 0.5 to 30 seconds
• Power Consumption: Less than 1.5 W
• Operating Temperature: -4 F to 131 F (-20 C to +55 C)
• Enclosure Rating: IP55 (upgradable to IP65 with sealing)
• Faceplate Dimensions: 1.75 inches wide x 4.5 inches high x approximately 1 1/8 inches deep
• Faceplate Material: Stainless steel jamb plate with text and logo
