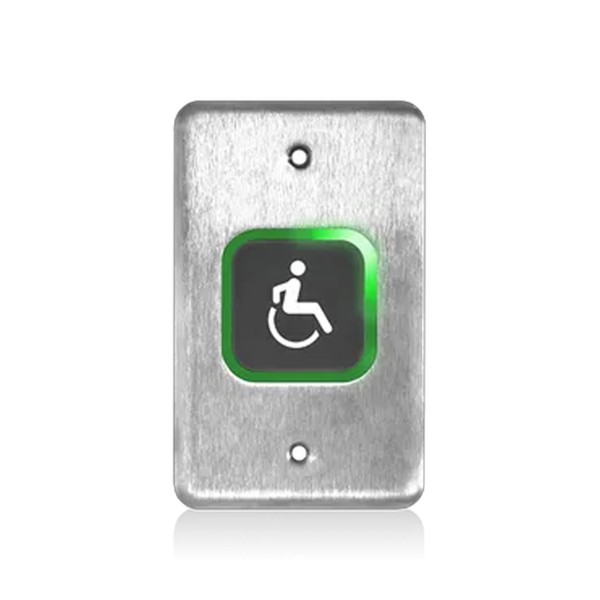

BEA Touchless Magic Wave to Open Actuator Single Gang Plate (Accessibility Logo Only, Stainless Steel) - 10MS41-SPAL

Key Features:

• Touchless BEA MAGIC Switch actuator enables hands-free activation for automatic doors, ideal for hygienic areas
• Single-gang stainless steel faceplate featuring accessibility logo only for ADA-compliant door activation
• Microwave Doppler radar detection ensures reliable performance and precise motion sensing
• Adjustable detection range from 4 to 24" allows customization for various installation areas
• Configurable output hold time from 0.5 to 30 seconds ensures smooth and safe door operation
• Built-in LED indicator and optional audible signal provide clear activation confirmation for users
• IP55-rated for protection against dust and water ingress, with optional upgrade to IP65 for more demanding applications

Specifications:

• Technology: Microwave Doppler radar motion detection
• Detection Range: Adjustable from 4 to 24"
• Frequency: 24.125 GHz, radiated power less than 5 mW/cm sq.
• Power Supply: 12 to 24 VAC ~10% or 12 to 24 VDC +30%/-10%
• Relay Output: Form C relay rated 1 A at 125 VAC or 60 VDC
• Output Hold Time: Adjustable 0.5 to 30 seconds
• Power Consumption: Less than 1.5 W
• Operating Temperature: -4 F to 131 F (-20 C to +55 C)
• Enclosure Rating: IP55 (optionally IP65 with additional sealing)
• Faceplate Dimensions: Standard single-gang plate
• Faceplate Material: Stainless steel with accessibility logo only
