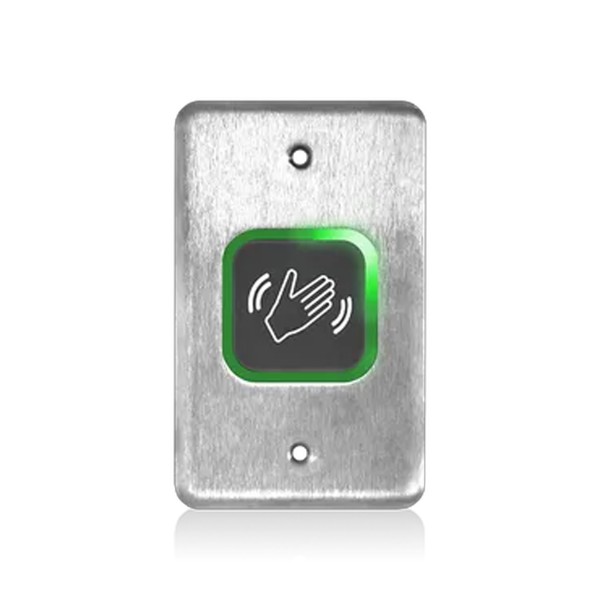

BEA Touchless Magic Wave to Open Actuator Single Gang Plate (Logo Only, Stainless Steel) - 10MS41-SPHL

Key Features:

• Touchless BEA MAGIC Switch actuator enables hygienic and contact-free activation for automatic doors
• Single-gang stainless steel faceplate featuring logo
• Microwave Doppler radar sensing technology ensures accurate and reliable hand motion detection
• Adjustable sensing range between 4 and 24" allows for flexible setup and positioning
• Configurable output hold time from 0.5 to 30 seconds provides full control over door operation timing
• LED visual feedback and optional audible signal confirm successful activation to users
• Rated IP55 for dust and water protection, with optional sealing available for IP65-rated installation

Specifications:

• Technology: Microwave Doppler radar motion detection
• Detection Range: Adjustable 4 to 24"
• Frequency: 24.125 GHz, radiated power below 5 mW/cm sq.
• Power Supply: 12 to 24 VAC ~10% or 12 to 24 VDC +30%/-10%
• Relay Output: Form C relay rated 1 A at 125 VAC or 60 VDC
• Output Hold Time: Adjustable from 0.5 to 30 seconds
• Power Consumption: Below 1.5 W
• Operating Temperature: -4 F to 131 F (-20 C to +55 C)
• Enclosure Rating: IP55 (optional IP65 upgrade available)
• Faceplate Dimensions: Standard single-gang size
• Faceplate Material: Stainless steel with logo only
