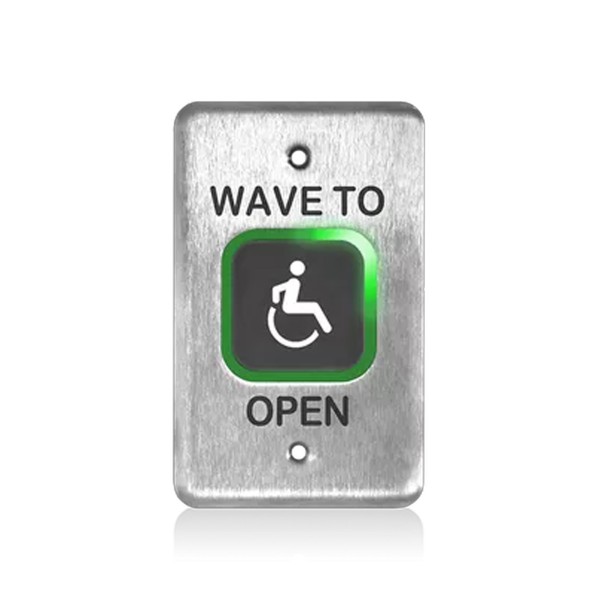

BEA Touchless Magic "Wave to Open" Actuator Single Gang Plate (Text & Accessibility Logo, Stainless Steel) - 10MS41-SA

Key Features:

• Touchless BEA MAGIC Switch actuator offers hygienic, contact-free activation for automatic doors
• Single-gang stainless steel faceplate featuring both "Wave to Open" text and accessibility logo for ADA compliance
• Utilizes microwave Doppler radar technology for accurate and reliable motion detection
• Adjustable sensing range from 4 to 24 inches allows flexible installation based on door proximity
• Customizable output hold time between 0.5 and 30 seconds ensures proper door response timing
• LED visual feedback and optional audible signal confirm successful activation to users
• IP55-rated housing provides dust and moisture resistance, with optional sealing available for IP65 protection in challenging environments

Specifications:

• Technology: Microwave Doppler radar motion detection
• Detection Range: Adjustable 4 to 24 inches
• Frequency: 24.125 GHz, radiated power less than 5 mW/cm sq
• Power Supply: 12 to 24 VAC ~10% or 12 to 24 VDC +30%/-10%
• Relay Output: Form C relay rated 1 A at 125 VAC or 60 VDC
• Output Hold Time: Adjustable from 0.5 to 30 seconds
• Power Consumption: Below 1.5 W
• Operating Temperature: -4 F to 131 F (-20 C to +55 C)
• Enclosure Rating: IP55 (upgradable to IP65 with optional sealing)
• Faceplate Dimensions: Standard single-gang stainless steel plate
• Faceplate Material: Stainless steel with "Wave to Open" text and accessibility logo
