Details

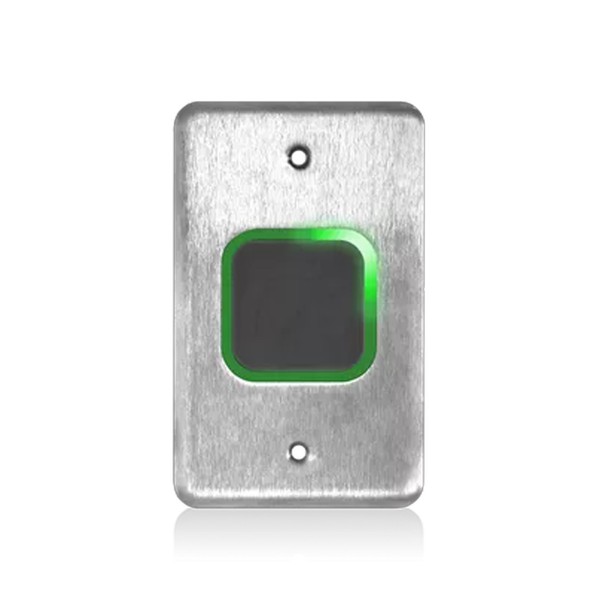

BEA Touchless Magic "Wave to Open" Actuator Single Gang Plate (Stainless Steel) - 10MS41-SP

Key Features:

• Touchless BEA MAGIC Switch actuator provides hygienic and efficient door activation for automatic entry systems
• Constructed from stainless steel with a plain single-gang faceplate design for a professional look
• Employs microwave Doppler radar technology to detect hand motion for contactless operation
• Adjustable sensing range from 4 to 24" enables precise activation control
• Programmable output hold time between 0.5 and 30 seconds for optimized door response duration
• Features LED status indicator and optional audible feedback for visual and audible activation confirmation
• IP55 areaal protection rating, with optional sealing available for IP65 applications in harsh or outdoor areas

Specifications:

• Technology: Microwave Doppler radar motion detection
• Detection Range: Adjustable between 4 and 24"
• Frequency: 24.125 GHz, radiated power below 5 mW/cm sq.
• Power Supply: 12 to 24 VAC ~10% or 12 to 24 VDC +30%/-10%
• Relay Output: Form C relay, rated 1 A at 125 VAC or 60 VDC
• Output Hold Time: Adjustable from 0.5 to 30 seconds
• Power Consumption: Less than 1.5 W
• Operating Temperature: -4 F to 131 F (-20 C to +55 C)
• Enclosure Rating: IP55 (upgradable to IP65 with optional sealing)
• Faceplate Dimensions: Standard single-gang size
• Faceplate Material: Stainless steel, plain finish without text or logo
