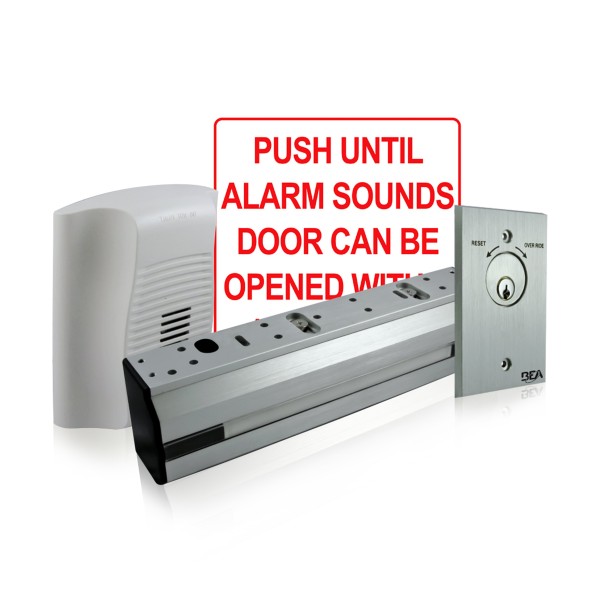

BEA Delayed Egress Maglock Kit with Key Actuator & External Siren & Signage (1200lb Hold Force) - 10MAGDE1

The BEA Delayed Egress Maglock Kit is an all-in-one kit that includes a maglock, sounder, and key switch and is UL-listed. This door locking component can synchronize two single doors to create a double-door automatic system. It features a fire-alarm input and a selectable 30-second door prop alarm. The integrated LED colored lighting and flashes can be adjusted. There are also triggering options that can be activated when pressure is placed on the door. The kit includes (1) 1,200 lb Maglock, (1) resettable key switch, (1) external sounder, and (1) alarm signage. The mortise cylinder is not included.

Key Features:

• Double door synchronization
• Adjustable egress time
• Selectable alarm
• Programmable LED color & flashes
• Monitored fire-alarm input
• UL294 listed

Specifications:

• Housing Dimensions: 10 53/64" width x 2 7/8" height x 2 1/8" depth
• Armature Dimensions: 7 7/16" width x 2 3/8" height x 5/8" depth
• Holding Force: 1200 lb
• Input Voltage: 12/24V DC dual-voltage operation
• Delay Timer: 15 or 30 seconds
• Components: Electromagnetic lock, key switch, siren, and illuminated signage
• Operating Temperature: 14 to 140 Degrees F
• Certifications: UL294
• Applications: Controlled egress doors, secure facilities, hospitals, and restricted access areas
