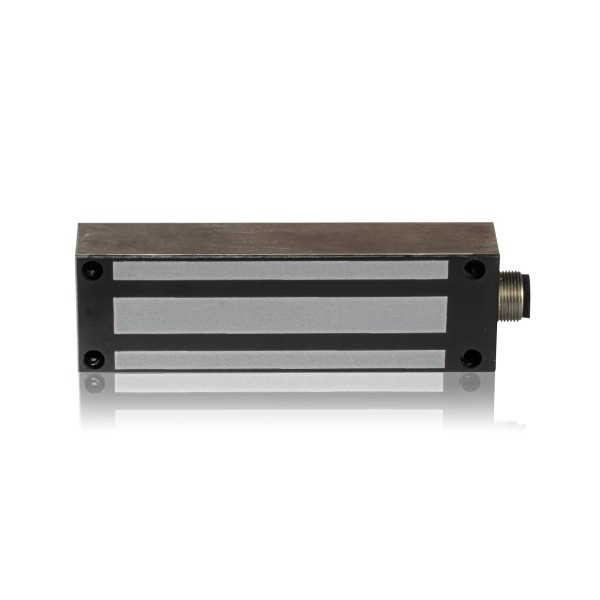

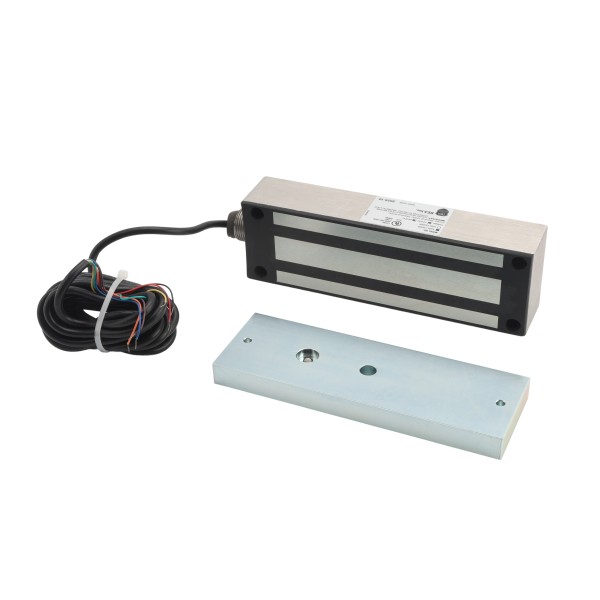

BEA Weatherproof Front-Mount Sliding Gate UL/ULC Maglock (1200lb Hold Force) - 10GL1200R

The BEA Front-Mount Sliding Gate Maglock is an electromagnetic lock that is designed to be used for automatic sliding doors. These locks are weather-resistant and built for heavy-duty use outdoors. The BEA Maglocks are easy to mount and are manufactured with a built-in remote lock sensor that provides the status of the sliding gate. These gate locks are UL listed, capable of holding 1,200 lbs of force, and provide additional surge protection. The 10GL1200R model is for front-mounted applications and comes with a 3/4" male NPS threaded conduit fitting.

Key Features:

• UL and ULC Listed
• Built-in surge protection
• Lock status sesnor

Specifications:

• Dimensions: 8 3/4" width x 2 1/2" height x 1 5/8" depth
• Mounting Type: Front-Mounted
• Holding Force: 1200 lbs
• Lock Type: Electromagnetic
• Voltage: 12/24V DC dual-voltage operation
• Current Draw: 500 mA at 12V DC / 250 mA at 24V DC
• Material: Stainless steel
• Certifications: UL/ULC listed
• Applications: Automatic sliding gates, perimeter security systems, industrial and commercial facilities
