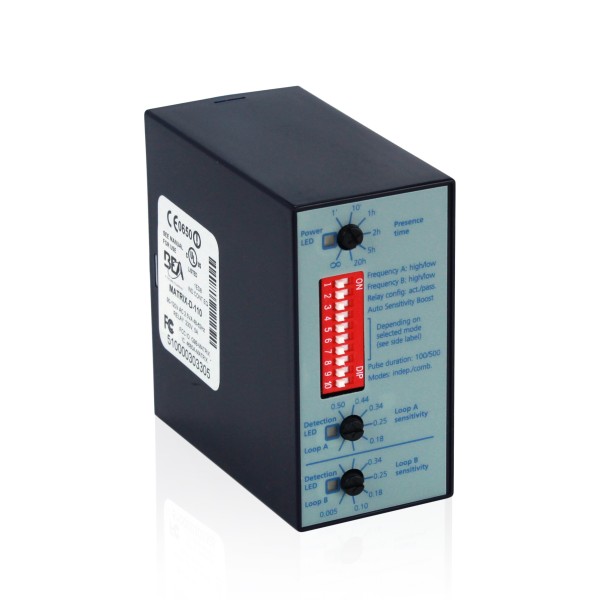

BEA 110V Dual-Loop Matrix Detector - 10MATRIXD110

Key Features:

• Dual-loop matrix detector designed for precise vehicle detection in access control and gate automation systems
• Operates on a 110V AC power supply for compatibility with a wide range of installations
• Advanced sensitivity adjustment allows accurate detection across varying environmental and traffic conditions
• Supports multiple relay outputs for enhanced flexibility and integration with control logic circuits
• Compact modular design suitable for mounting within standard enclosures or control panels
• Engineered for reliable long-term use in industrial and commercial settings

Specifications:

• Input Voltage: 110V AC
• Detection Type: Dual-loop inductive vehicle detection
• Relay Outputs: Two SPDT relays for configurable control responses
• Sensitivity Levels: Adjustable for each loop channel
• Response Time: Less than 120 milliseconds for rapid detection
• Frequency Settings: Multiple selectable loop frequencies to prevent crosstalk between detectors
• Housing Material: Durable ABS plastic enclosure
• Operating Temperature: -40 F to +158 F (-40 C to +70 C)
• Indicators: LED status lights for power, loop presence, and fault indication
• Mounting: DIN rail compatible or panel mount installation
• Applications: Gate operators, vehicle barrier systems, and traffic management control panels
