Details

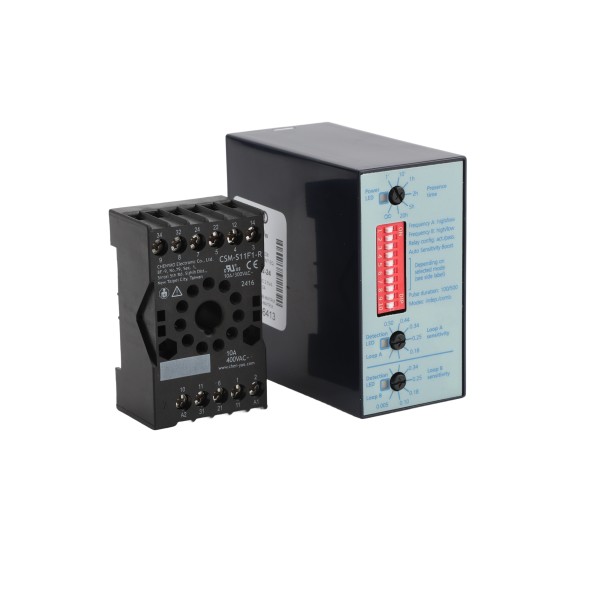

BEA 12-24V Dual-Loop Matrix Detector - 10MATRIXD1224

Key Features:

• Dual-loop vehicle detection system operating on 12 to 24V AC or DC power input for flexible compatibility
• Advanced microprocessor design ensures high accuracy and fast response for gate, door, and traffic systems
• Independent channel configuration allows each loop to function separately or in combination for directional logic
• LED indicators provide clear visual feedback for power, detection, and fault status
• Compact design suitable for control panel or DIN rail mounting
• Designed for automatic gates, barriers, and industrial door control systems

Specifications:

• Input Voltage: 12 to 24V AC/DC
• Detection Type: Dual-loop inductive vehicle detection
• Relay Outputs: Two SPDT relay outputs, rated 3A at 24V DC
• Loop Frequency: Adjustable to prevent interference between adjacent loops
• Response Time: Less than 120 milliseconds
• Loop Inductance: 20 to 2000 microhenries
• Sensitivity: Adjustable for each detection channel
• Indicators: LED display for loop presence, power, and fault diagnostics
• Housing Material: Durable ABS plastic enclosure
• Operating Temperature: -40 F to +158 F (-40 C to +70 C)
• Mounting Type: DIN rail or panel mount
• Applications: Vehicle detection for automated gates, parking systems, and industrial automation
