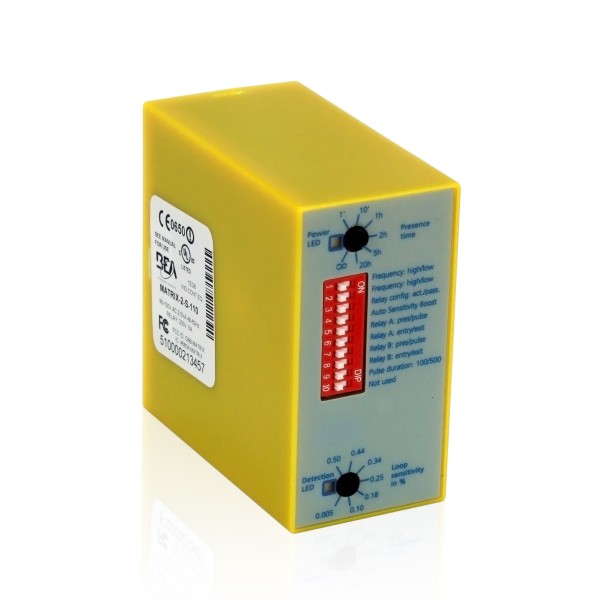

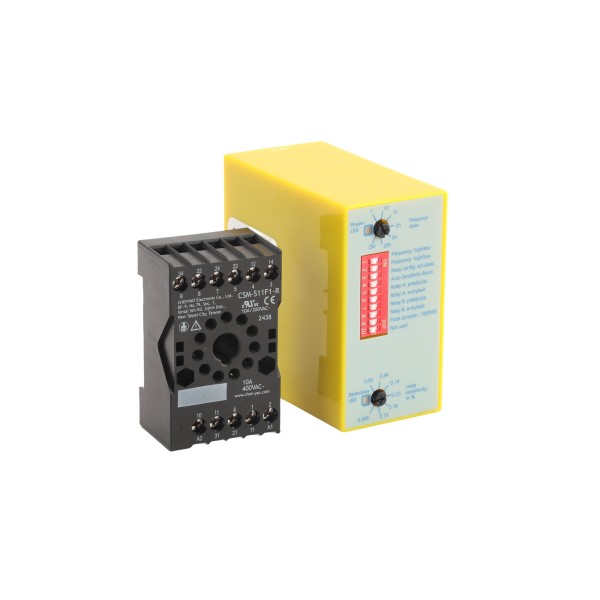

BEA 110V Single-Loop Matrix II Detector with Yellow Housing - 10MATRIXIIS110

Key Features:

• Single-loop Matrix II detector designed for vehicle detection in gate and access control systems
• Operates on a 110V AC power supply, providing a dependable option for a wide range of installations
• Housed in a high-visibility yellow enclosure for easy identification and service access
• LED indicators provide clear status information for power, detection, and loop faults
• Compatible with standard inductive loops used in parking and security systems
• Compact modular design simplifies mounting inside control cabinets or panels

Specifications:

• Input Voltage: 110V AC
• Detection Type: Single-loop inductive vehicle detection
• Relay Output: One SPDT relay rated for up to 3A at 24V DC
• Loop Inductance Range: 20 to 2000 microhenries
• Sensitivity: Adjustable for accurate vehicle detection
• Response Time: Less than 120 milliseconds
• Frequency Settings: Adjustable to prevent interference with adjacent loops
• Indicators: LED lights for power, detection, and loop integrity
• Housing Color: Yellow for high visibility and safety compliance
• Operating Temperature: -40 F to +158 F (-40 C to +70 C)
• Dimensions: Compact modular enclosure suitable for panel or DIN rail mounting
• Applications: Automated gates, parking barriers, traffic control, and industrial vehicle detection systems
