Details

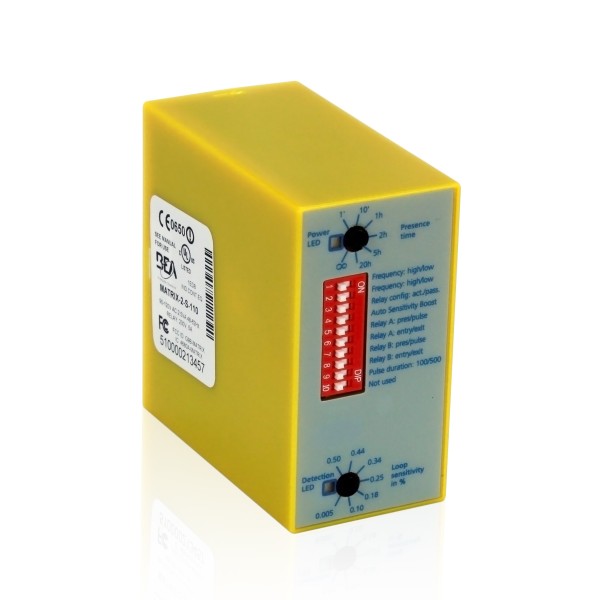

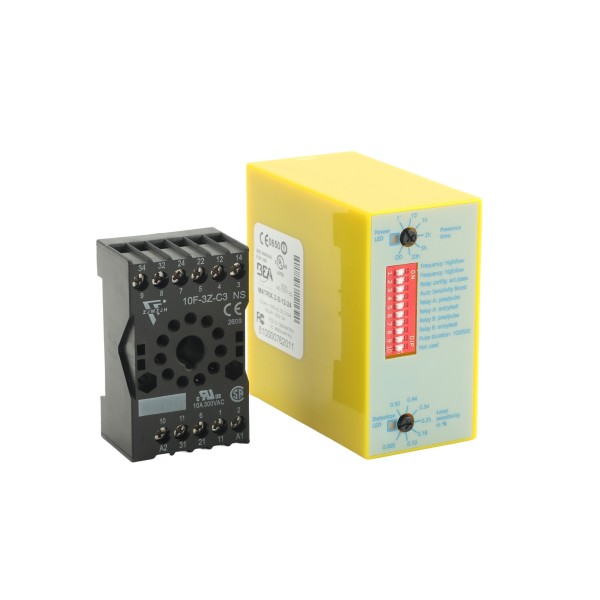

BEA 12-24V Single-Loop Matrix II Detector with Yellow Housing - 10MATRIXIIS1224

Key Features:

• Single-loop Matrix II detector engineered for vehicle detection in access control, parking, and industrial gate systems
• Operates on a 12 to 24V AC/DC power supply, providing versatile compatibility with low-voltage setups
• Distinct yellow housing allows for quick identification and enhanced visibility in control environments
• Features LED indicators for real-time loop status, fault conditions, and power monitoring
• Compact modular design suitable for DIN rail or control panel mounting
• Adjustable sensitivity and frequency settings ensure stable performance in all traffic conditions

Specifications:

• Input Voltage: 12 to 24V AC/DC
• Detection Type: Single-loop inductive vehicle detection
• Relay Output: One SPDT relay rated up to 3A at 24V DC
• Loop Inductance Range: 20 to 2000 microhenries
• Sensitivity: Adjustable per detection loop
• Response Time: Less than 120 milliseconds
• Frequency Settings: Multiple options to prevent interference between detectors
• Indicators: LED lights for Power, Loop Detection, and Fault
• Housing Color: Yellow enclosure for easy visibility and service access
• Operating Temperature: -40 F to +158 F (-40 C to +70 C)
• Mounting Type: DIN rail or panel mount installation
• Applications: Vehicle gate operators, parking systems, and industrial automation environments
