Details

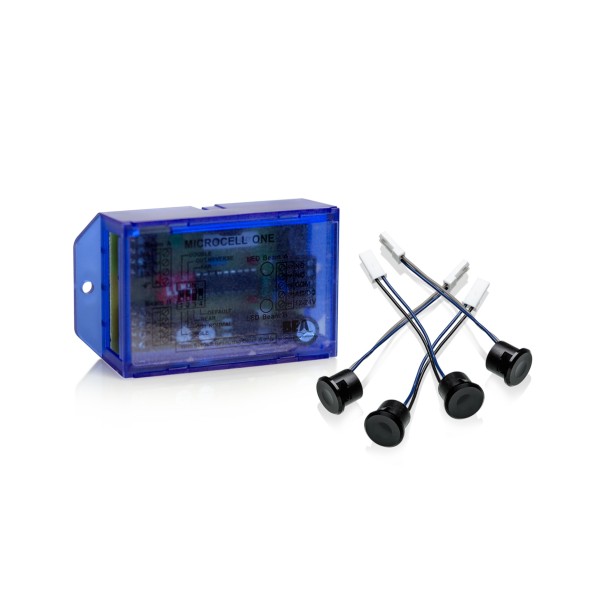

BEA Microcell Double Safety Beams with 18ft Cable - 10MICROCELL1D

Key Features:

• Compact Double Beam Safety System for Pedestrian Automatic Doors
• Active Infrared Technology for Threshold and Guide-Rail Protection on Sliding or Swinging Doors
• Fits in 1/2 in Pre-Drilled Holes or Surface Mount with Single-Wire Connection Per Side
• Highly Sunlight and Incandescent Light Immune for Reliable Operation in Bright Environments
• Small Footprint Heads with NEMA 4 / IP65 Protection for Harsh Conditions

Specifications:

• Technology: Active Infrared
• Detection Mode: Presence (Beam Interruption)
• Minimum Mounting Height: 12 in from floor
• Minimum Distance Between Beams (when crossed): 12 in
• Minimum Range of Detection: 3 ft
• Maximum Range of Detection: 15 ft
• Alignment Tolerance: 8 Degrees
• Response Time: Approx. 40 ms
• Hold Time: 300 ms
• Supply Voltage: 12 - 24 VAC ~10 Percent / 12 - 24 VDC -5 Percent / +30 Percent
• Current Consumption: Approx. 100 mA
• Output Contact Rating: 1 Relay (NC / NO Contacts)
• Maximum Contact Voltage: 50 VAC / VDC
• Maximum Contact Current: 1 A
• Maximum Switching Power: 30 W (DC) / 60 VA (AC)
• Operating Temperature: -30 F to 131 F
• Immunity-Sunlight: 75,000 lux; Incandescent Lamp: 25,000 lux @ 8 Degrees Angle
• Degree of Protection: NEMA 4 / IP65 (Beam Heads)
• Head Body Dimensions: Approx. 15/32 in length x 15/32 in diameter
• Cable Length: 18 ft (standard) - optional longer length available
• Material: ABS; Housing Color: Black
