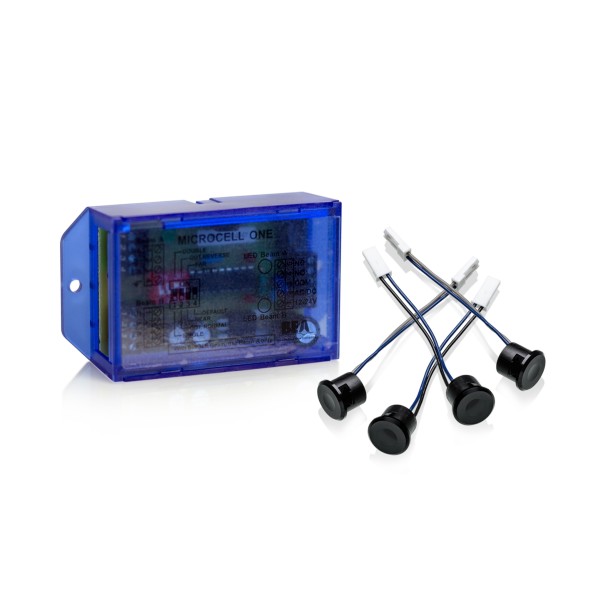

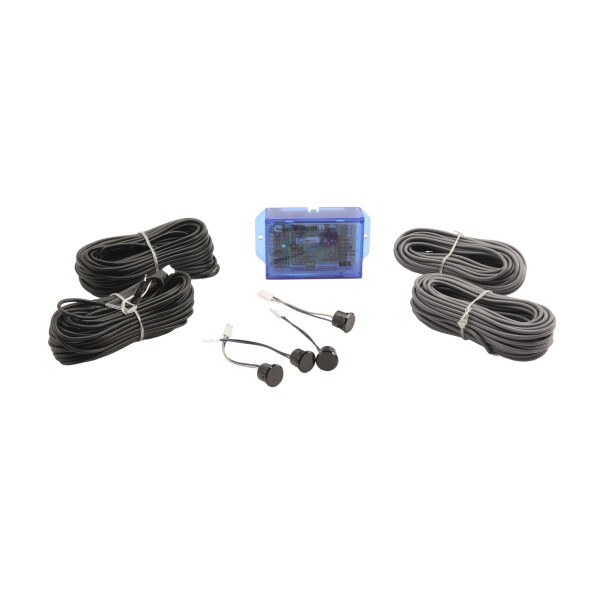

BEA Microcell Double Safety Beams with 32ft Cable - 10MICROCELL1DL

Key Features:

• Double-Beam Safety System for Automatic Doors with Extended Cable Reach
• Active Infrared Technology for Pedestrian Door Thresholds or Guide Rails
• Compact Heads Suitable for 1/2-in Pre-Drilled Mounting Holes or Surface Fixing
• High Ambient Light Immunity; Resists Sunlight and Artificial Light Interference
• NEMA 4 / IP65 Rated Beam Heads for Use in Harsh or Outdoor Environments

Specifications:

• Technology: Active Infrared
• Detection Mode: Presence (Beam Interruption)
• Minimum Mounting Height: 12 in from Floor
• Minimum Distance Between Beams (Crossed Beams): 12 in
• Detection Range: 3 ft to 15 ft
• Alignment Tolerance: 8 Degrees
• Response Time: ~ 40 ms
• Hold Time: 300 ms
• Supply Voltage: 12-24 VAC ~10 Percent / 12-24 VDC- 5 Percent/+30 Percent
• Current Consumption:< 100 mA
• Output Contact Rating: 1 Relay (NC / NO)
• Maximum Contact Voltage: 50 VAC / VDC
• Maximum Contact Current: 1 A
• Maximum Switching Power: 30 W (DC) / 60 VA (AC)
• Operating Temperature Range: -30 F to 131 F
• Immunity; Sunlight: 75,000 lux; Incandescent Lamp: 25,000 lux @ 8 Degrees Alignment
• Degree of Protection: NEMA 4 / IP65 (Beam Heads)
• Cable Length: ~32 ft (Double Beam Version)
• Material: ABS; Housing Color: Black
