Details

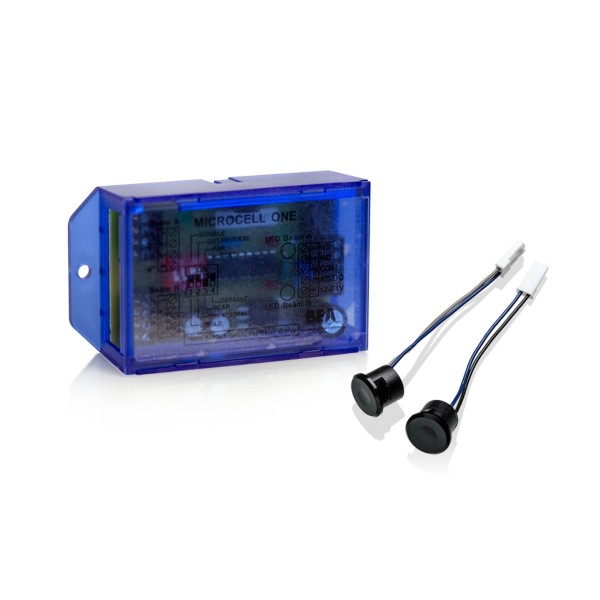

BEA Microcell Single Safety Beam with 18ft Cable - 10MICROCELL1S

Key Features:

• Compact Single-Beam Safety System for Automatic Doors
• Active Infrared Technology Detects Beam Interruption for Presence Monitoring
• Fits Easily Into 1/2-in Pre-Drilled Door Frame Holes or Surface Mounts
• Resistant to High Ambient Light, Sunlight, and Artificial Light Interference
• NEMA 4 / IP65 Rated Beam Heads for Harsh Environments

Specifications:

• Technology: Active Infrared
• Detection Mode: Presence (Beam Interruption)
• Minimum Mounting Height: 12 in from Floor
• Detection Range: Minimum 3 ft-Maximum 15 ft
• Alignment Tolerance: 8 Degrees
• Response Time: Less Than or Equal to 40 ms
• Hold Time: 300 ms
• Supply Voltage: 12-24 VAC ~10 Percent or 12-24 VDC- 5 Percent / +30 Percent
• Current Consumption: Less Than 100 mA
• Output Contact Rating: 1 Relay (NC / NO Contacts)
• Maximum Contact Voltage: 50 V AC / VDC
• Maximum Contact Current: 1 A (Resistive)
• Maximum Switching Power: 30 W (DC) / 60 VA (AC)
• Operating Temperature Range: -30 F to 131 F
• Immunity to Sunlight: Up to 75,000 lux; Incandescent Lamp: 25,000 lux @ 8 Degrees Alignment
• Degree of Protection: NEMA 4 / IP65 (Beam Heads)
• Cable Length: 18 ft (Standard)
• Housing Color: Black (Sensor Heads); Control Box: Blue Transparent
