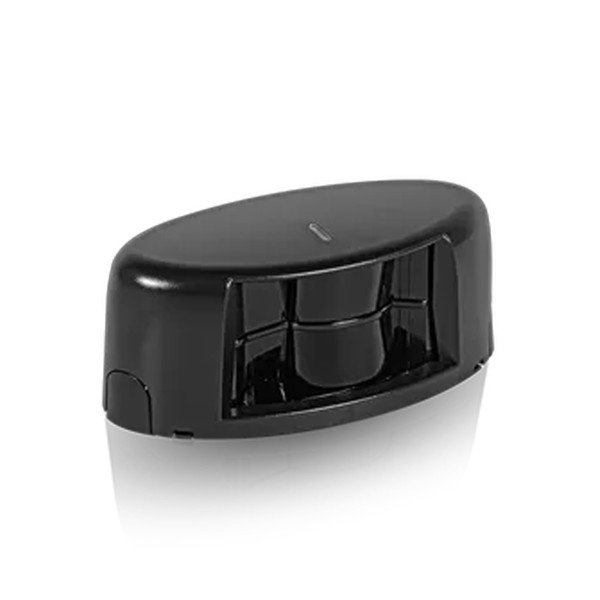

BEA LZR-Microscan Replacement Sensor (Left Side) - 10LZRMICROLEFT-T

Key Features:

• Laser-based Time-of-Flight Sensor with Full Door Leaf Coverage
• Background Independent Detection Zones for Reliable Performance in Varying Conditions
• Gyroscope-Assisted Door Movement Sensing for Accurate Position Tracking
• High Resolution Pattern Depths That Exceed ANSI 156.10 8.2.2.3 Standards
• Compact Left Side Housing Designed for Door-Mounted Installation

Specifications:

• Technology: LASER Scanner, Time-of-Flight Measurement
• Detection Mode: Presence
• Door Width Range: 20 in to 48 in
• Mounting Height: 78 in to 98 in
• Remission Factor: > 2 Percent
• Angular Resolution: 2.56 Degrees
• Supply Voltage: 12-24 VAC ~5 Percent / 12-30 VDC ~10 Percent
• Power Consumption: 15 W Maximum
• Response Time: Typical 40 ms; Maximum 80 ms
• Outputs: 4 Electro-Mechanical Relays (Polarity Free)
• Operating Temperature Range: -13 F to +121 F
• Degree of Protection - Hub: IP20 / NEMA 1; Sensor: IP53 / NEMA 3
• Vibrations: Less Than 2 G
• Material / Color: PC / ASA - Housing Color Black
