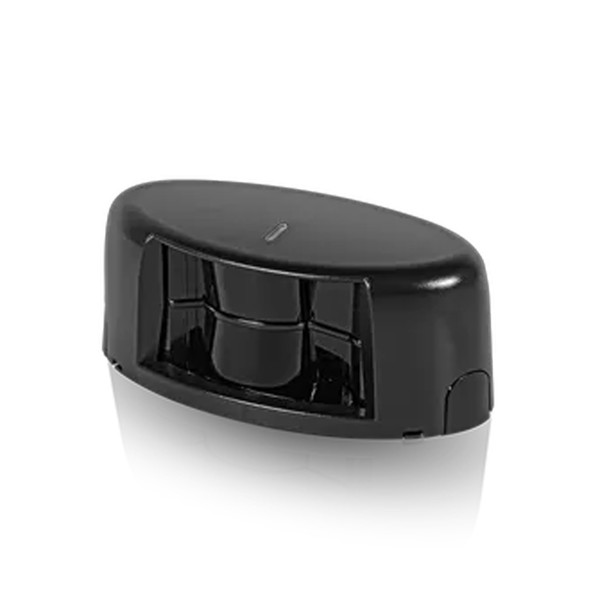

BEA LZR-Microscan Replacement Sensor (Right Side) - 10LZRMICRORIGHT-T
Details
BEA LZR-Microscan Replacement Sensor (Right Side) - 10LZRMICRORIGHT-T
With 4 electro-mechanical relays, the BEA LZR-Microscan Replacement Sensor (Right Side) provides safe detection across automatic swing doors. With flexible output control for safety and presence logic integration, this sensor is designed for dependable use. Offering a 40 to 80 millisecond response, the BEA LZR-Microscan Replacement Sensor (Right Side) provides stable and constant performance.
Features:
- Background independent detection zones
- Gyroscope-assisted door movement sensing for accurate position tracking
- High resolution pattern depths that exceed ANSI 156.10 8.2.2.3 standards
- Compact right side housing designed for door-mounted installation
Specifications:
- Technology: LASER Scanner, Time-of-Flight Measurement
- Door Width Range: 20 in to 48 in
- Mounting Height: 78 in to 98 in
- Power Consumption: 15 W Maximum
- Response Time: Typical 40 ms; Maximum 80 ms
- Outputs: 4 Electro-Mechanical Relays (Polarity Free)
| SKU | 10LZRMICRORIGHT-T |
|---|---|
| Alternative SKU | 10LZRMICRORIGHT.T |
Input Voltage
Need to know the difference between voltages? Check out our guide!
Learn More
|
12 DC |
| Product | Presence Sensor |
| Unit Type | Single |
| Material | Polycarbonate |
| Application | Doors |
| Mount Type | Door Mount |
| Size | 28" x 12" x 8" |
| Max Mounting Height | 8' |
| Max Scan Range | 2' |
| Orientation | Right Side |
| Max Door Width | 16' |
| Color | Black |
| Product Type | Sensor |
| Series | LZR-Microscan |
| Manufacturer | BEA Industrial |
| Specification Sheet | Download PDF file |
| Information Sheet | Download PDF file |
| Manual | Download PDF file |
| Installation Guide | Download PDF file |
