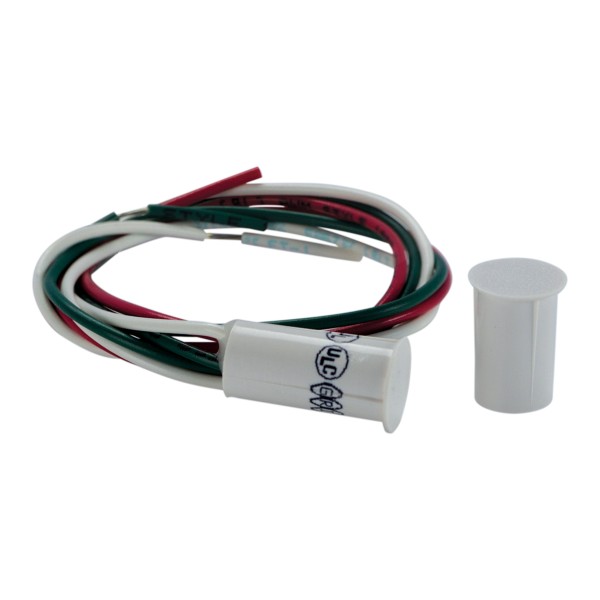

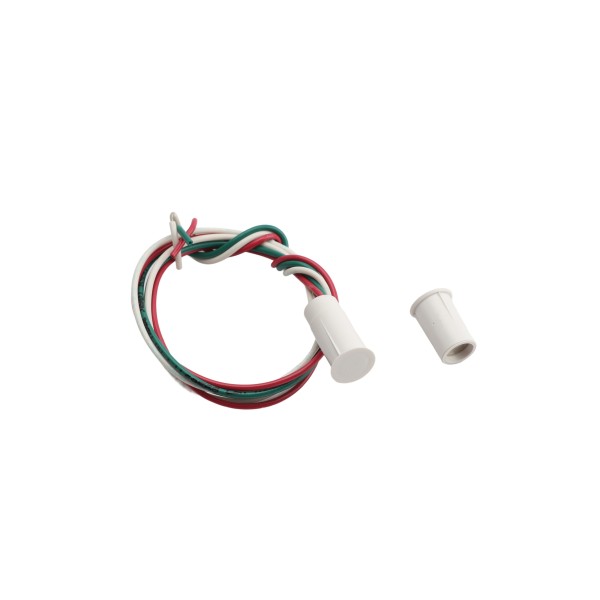

BEA Miniature 3/8" Recessed Open/Closed Door Position Switch Set, SPDT - 10SWITCH75

The BEA Miniature 3/8" Recessed Door Position Switch Set is designed to provide door position feedback to BEA's automatic door systems, indicating whether the door is opened or closed. The size is more compact for applications that have tight or thin door frames. The maximum gap between the magnet and the switch is 1/2". This door switch offers versatility with its ability to be configured to either a normally open or a normally closed setting.

Specification

• Switch type: Magnetic Door Position
• Switch Configuration: Single-Pole, Double-Throw
• Dimensions: 0.44" Diameter
• Maximum Gap: 1/2"
• Contact Type: Normally Open / Normally Closed
• Mounting Type: Flush Mounted
