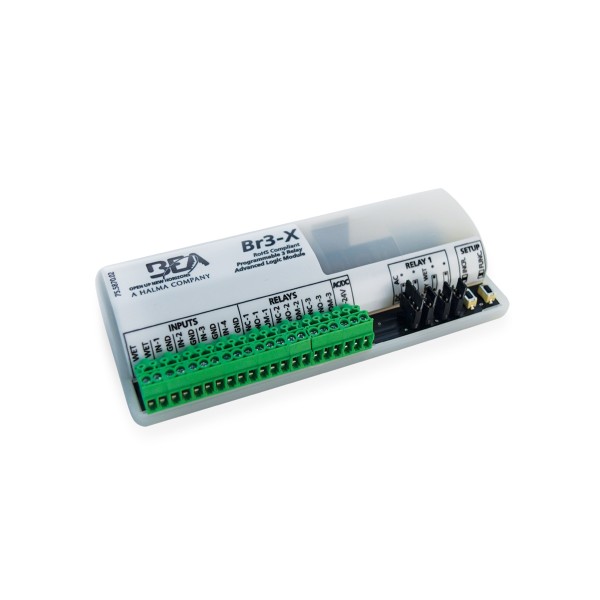

BEA 3-Relay Programmable Module with Washroom Functions - 10BR3X

Key Features:

• Three programmable relays designed for custom control logic and washroom functions, including occupancy, lockout, and call status
• Integrated timing, sequencing, and logic control options for flexible configuration in access control and automatic door systems
• Washroom function mode supports occupied indication, privacy lockout, and automatic reset after use
• LED indicators display relay status, power condition, and signal activity for at-a-glance system diagnostics
• Compact design allows direct integration into control enclosures or wall-mount housings

Specifications:

• Power Supply: 12 to 24V AC/DC ~10 percent
• Relay Outputs: Three SPDT relays rated 10A at 24VDC or 120VAC (resistive load)
• Inputs: Three trigger inputs compatible with dry contact or logic level signals
• Operating Frequency: Internal microcontroller with configurable timing and logic delay settings
• Logic Functions: Programmable via onboard DIP switches for latching, toggle, momentary, or washroom functions
• Indicators: Power LED and per-relay status LEDs
• Mounting: Surface-mount PCB or DIN-rail compatible design
• Operating Temperature Range: -4 F to +140 F (-20 C to +60 C)
• Dimensions: Approximately 4.5" x 3.5" x 1"
• Compliance: UL recognized components, suitable for low-voltage control systems
