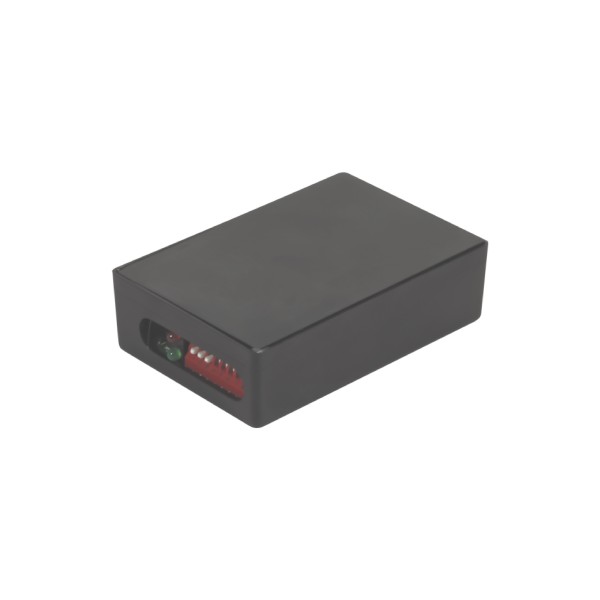

BEA LO21 Lock-Out Relay Module - 10LO21

Key Features:

• Lock-out relay module designed for use in automatic door and gate control systems to prevent unintended activations
• Provides a secure interlock function that disables secondary activation devices while a primary circuit is active
• Enables sequencing between two or more doors to ensure one door remains closed before the next opens, enhancing safety and access control
• Compact design fits within standard control enclosures and integrates easily with push plates, key switches, or sensors
• Equipped with LED status indicators for clear visual feedback of relay activity and power status

Specifications:

• Power Supply: 12 to 24V AC/DC ~10 percent
• Relay Output: SPDT relay rated for 10A at 120VAC or 24VDC (resistive load)
• Input Type: Dry contact or low voltage logic trigger
• Lock-Out Function: Prevents activation of connected inputs during relay engagement
• Indicators: Power LED and relay status LED
• Wiring Terminals: Screw-type connectors for quick and reliable installation
• Dimensions: Approximately 2.75" x 2" x 1"
• Operating Temperature Range: -4 F to +140 F (-20 C to +60 C)
• Mounting: Surface-mount PCB suitable for integration in control boxes or relay panels
