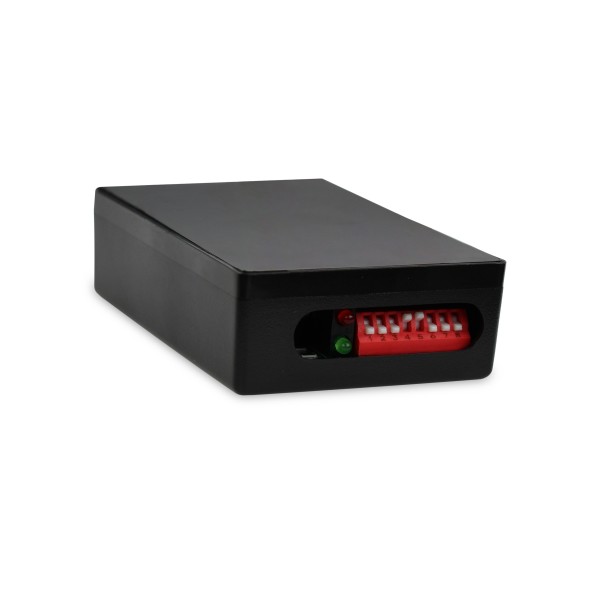

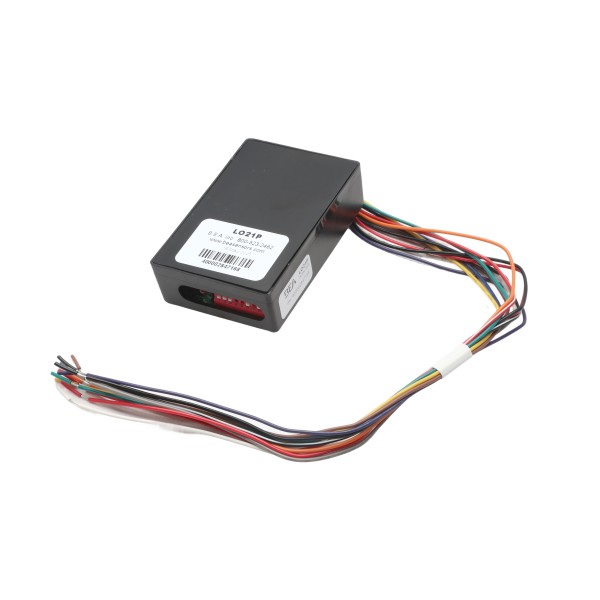

BEA LO21P Universal Lock-Out Relay Module for Parallax Packages - 10LO21P

Key Features:

• Lock-out relay module designed to interlock two or more automatic doors, preventing simultaneous activation and ensuring controlled sequencing
• Ideal for airlock or vestibule applications where one door must remain closed while the other is open
• Compatible with push plates, sensors, and access control inputs for flexible integration with automatic door systems
• LED indicators display relay status and power operation for quick system diagnostics and confirmation
• Compact design allows convenient mounting inside operator control boxes or accessory enclosures

Specifications:

• Power Supply: 12 to 24V AC/DC ~10 percent
• Relay Output: SPDT relay rated at 10A at 120VAC or 24VDC (resistive load)
• Input Type: Dry contact or low voltage trigger
• Lock-Out Function: Prevents activation of secondary doors or devices while the primary relay is engaged
• Indicators: Power LED and relay activation LED for real-time visual feedback
• Terminals: Screw-type connectors for secure wiring connections
• Mounting: Surface-mount PCB suitable for control boxes or panels
• Dimensions: Approximately 2.75" x 2" x 1"
• Operating Temperature Range: -4 F to +140 F (-20 C to +60 C)
