Details

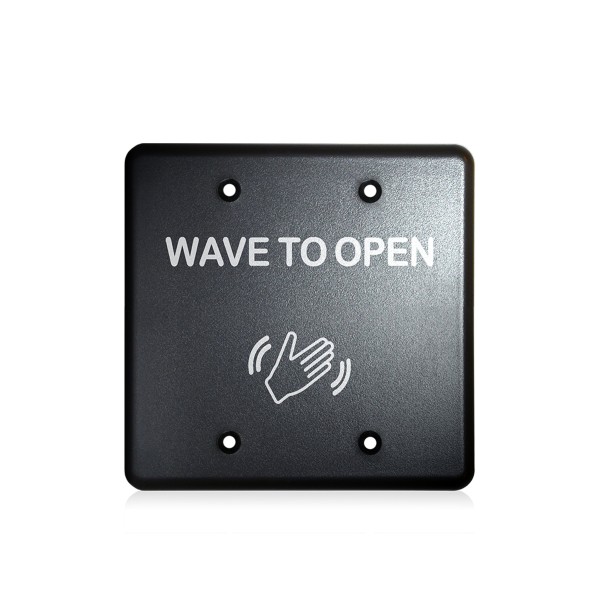

BEA MS31 Magic "Wave to Open" Double Gang Actuator Faceplate (Text & Logo, Black) - 70-5841

Key Features:

• Touch-free actuator faceplate with "Wave to Open" gesture support that operates by motion rather than touch
• Detection zone adjustable between 4" and 24" to match the approach distance of users and carts
• LED indicator can be configured via dip-switch to show either during detection or only when activation occurs
• Black double-gang faceplate with text and accessibility logo gives a clear visual cue while blending with ADA signage
• Selectable toggle or timer mode allows activation either once per wave or for a defined hold time from 0.5 to 30 seconds

Specifications:

• Technology: Microwave Doppler Radar operating at 24.125 GHz
• Detection Mode: Motion sensing in both directions with adjustable range from 4" to 24"
• Output: Relay with switch-over contact rated up to 60 VDC or 125 VAC and 1-amp resistive limit
• Supply Voltage: 12 to 24 VAC ~10 percent or 12 to 24 VDC +30 / -10 percent
• Power Consumption: Less than 1.5 watts
• Mounting Option: Double-gang faceplate measuring 4 1/2" x 4 1/2" x 1/4" thick
• Material: Polycarbonate and polyethylene components for the faceplate and sensor housing
• Protection Rating: IP54 to provide protection in indoor and semi-protected exterior areas
• Operating Temperature Range: -4 F to +131 F (-20 C to +55 C)
