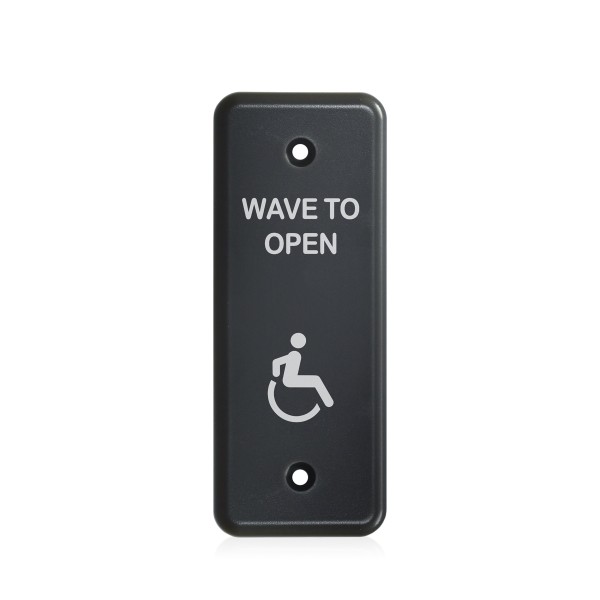

BEA MS31 Magic Wave to Open Actuator Jamb Faceplate (Accessibility Logo Only, Gray) - 70-5829

Key Features:

• Microwave touchless actuator designed for hands-free door activation using a simple "Wave to Open" motion
• Adjustable detection zone allows fine-tuning from 4" to 24" for optimal performance in various doorway conditions
• Features a silent activation mode for noise-sensitive environments such as healthcare or office spaces
• Engineered for reliability in high-traffic commercial applications, providing long-lasting and hygienic door activation

Specifications:

• Technology: Microwave Doppler Radar operating at 24.125 GHz
• Detection Range: Adjustable between 4" and 24"
• Output Type: Relay with switch-over contact providing voltage-free operation rated up to 60 VDC or 125 VAC at 1 amp
• Power Supply: 12 to 24 VAC ~10 Percent or 12 to 24 VDC +30 Percent / -10 Percent
• Power Consumption: Less than 1.5 watts under typical load
• Construction: High-impact molded enclosure with Gray anodized aluminum faceplate
• Environmental Protection: IP54 rated for indoor or sheltered outdoor use
• Operating Temperature Range: -4 F to +131 F (-20 C to +55 C)
