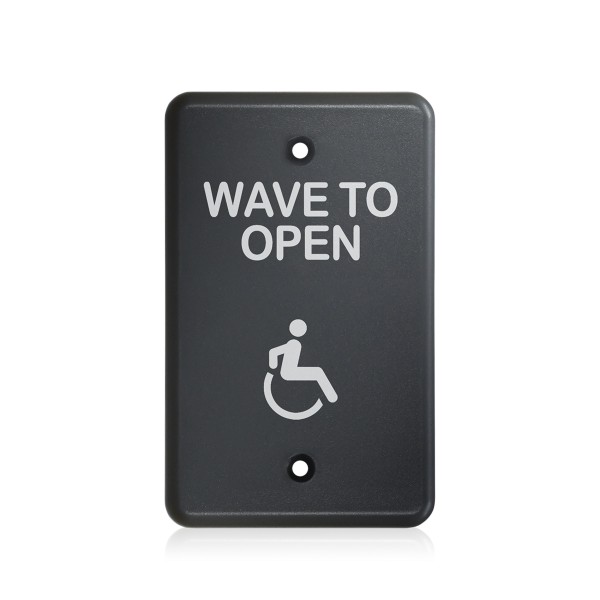

BEA MS31 Magic Wave to Open Single Gang Actuator Faceplate (Accessibility Logo Only, Gray) - 70-5837

Key Features:

• Touchless actuator designed for single-gang faceplate use with a wave gesture to activate doors
• Adjustable detection zone ranges from 4" to 24" to suit varying user approach angles and clearances
• Dip-switch settings offer selectable LED behavior for detection feedback or discreet operation
• The gray faceplate displays only the accessibility logo for a minimalist yet compliant appearance
• Mode selection includes toggle or timer operation, with activation hold time adjustable from 0.5 to 30 seconds

Specifications:

• Technology: Microwave Doppler Radar operating at 24.125 GHz
• Detection Mode: Bidirectional motion sensing with an adjustable range from 4" to 24"
• Output: Relay with switch-over contact rated up to 60 VDC or 125 VAC at 1 amp (resistive)
• Supply Voltage: 12 to 24 VAC ~10 percent or 12 to 24 VDC +30 / -10 percent
• Power Consumption: Less than 1.5 watts
• Mounting Option: Single-gang faceplate with dimensions of 4 1/2" x 2 3/4" x 1/4" thick
• Material: Polycarbonate and polyethylene construction for faceplate and housing
• Protection Rating: IP54 for use in indoor or semi-protected outdoor environments
• Operating Temperature Range: -4 F to +131 F (-20 C to +55 C)
