Details

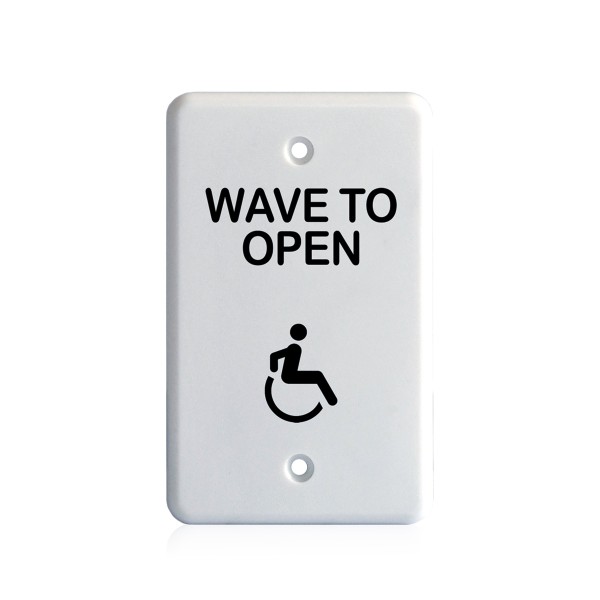

BEA MS31 Magic Wave to Open Single Gang Actuator Faceplate (Accessibility Logo Only, White) - 70-5840

Key Features:

• Touchless actuator designed for single-gang mounting featuring a "wave to open" gesture that supports hands-free operation
• Detection zone is adjustable from 4" to 24" to suit a variety of doorway depths and approach methods
• Dipswitch-controlled LED modes provide either continuous visual indication during detection or activation-only feedback
• The white faceplate includes only the accessibility logo for a clean and minimalist visual presentation
• Offers both toggle mode for one-time activation per wave and timer mode with hold time adjustable from 0.5 to 30 seconds

Specifications:

• Technology: Microwave Doppler radar operating at 24.125 GHz
• Detection Mode: Bidirectional motion sensing with range adjustable between 4" and 24"
• Output: Relay with switch-over contact, rated for up to 60 V DC or 125 V AC at 1 amp resistive load
• Supply Voltage: 12 to 24 V AC ~10 percent or 12 to 24 V DC +30 / -10 percent
• Power Consumption: Less than 1.5 watts
• Mounting Option: Single-gang faceplate with dimensions of 4 1/2" x 2 3/4" x 1/4" thick
• Material: Polycarbonate and polyethylene construction
• Protection Rating: IP54 for indoor or semi-protected outdoor locations
• Operating Temperature Range: -4 F to +131 F (-20 C to +55 C)
