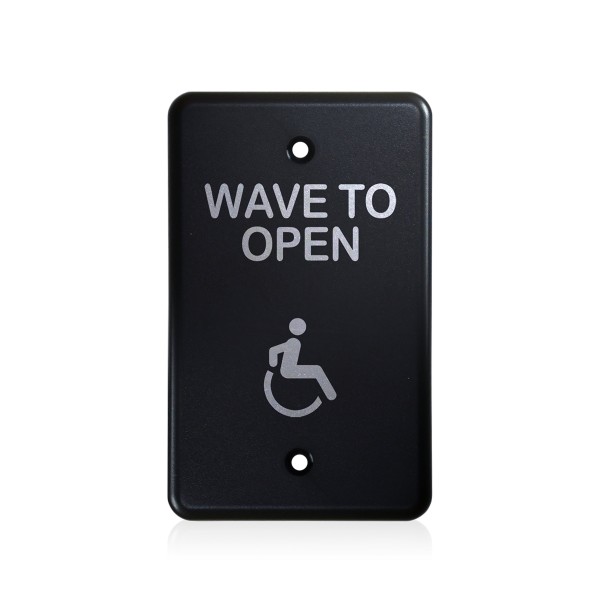

BEA MS31 Magic Wave to Open Single Gang Actuator Faceplate (Accessibility Logo Only, Black) - 70-5834

Key Features:

• Touchless actuator designed for single-gang faceplate use with a "wave to open" gesture for hands-free activation
• The detection zone is adjustable from 4" to 24", enabling settings for different door approach conditions
• Dipswitch options allow LED behavior to be set for either constant illumination during detection or no illumination until activation
• The black faceplate features only the accessibility logo (no additional text) for clean visual presentation in compliance environments
• Both toggle and timer modes are available, with hold time adjustable between 0.5 and 30 seconds to suit various control needs

Specifications:

• Technology: Microwave Doppler Radar at 24.125 GHz
• Detection Mode: Bidirectional motion sensing with an adjustable zone between 4" and 24"
• Output: Relay with switch-over contact rated at up to 60 VDC or 125 VAC at 1 amp resistive
• Supply Voltage: 12 to 24 VAC ~10 percent or 12 to 24 VDC +30 / -10 percent
• Power Consumption: Less than 1.5 watts
• Mounting Option: Single-gang faceplate with dimensions of 4 1/2" x 2 3/4" x 1/4" thick
• Material: Polycarbonate and polyethylene construction
• Protection Rating: IP54 for indoor or semi-protected outdoor environments
• Operating Temperature Range: -4 F to +131 F (-20 C to +55 C)
