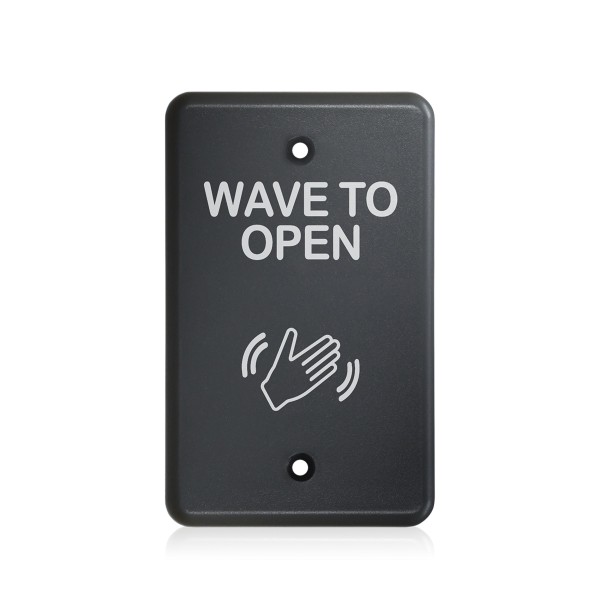

BEA MS31 Magic "Wave to Open" Single Gang Actuator Faceplate (Text & Logo, Gray) - 70-5836

Key Features:

• Touchless actuator designed for single-gang plate use with a "wave to open" gesture that eliminates the need to press a button
• Adjustable detection zone ranges from 4" to 24", enabling calibration for various approach depths
• Dipswitch settings let you choose whether the LED illuminates when motion is detected or remains dark until activation
• Faceplate includes both text and accessibility logo on a gray finish
• Toggle or timer mode selection allows either one-time activation per wave or a hold time adjustable from 0.5 to 30 seconds for extended door opening duration

Specifications:

• Technology: Microwave Doppler radar operating at 24.125 GHz
• Detection Mode: Bidirectional motion sensing with adjustable range between 4" and 24"
• Output: Relay with switch-over contact, rated up to 60 VDC or 125 VAC and 1 amp resistive
• Supply Voltage: 12 to 24 VAC ~10 percent or 12 to 24 VDC +30 / -10 percent
• Power Consumption: Less than 1.5 watts
• Mounting Option: Single-gang faceplate measuring 4 1/2" x 2 3/4" x 1/4" thick
• Material: Polycarbonate and polyethylene construction
• Protection Rating: IP54 for use in indoor and semi-protected outdoor environments
• Operating Temperature Range: -4 F to +131 F (-20 C to +55 C)
