Details

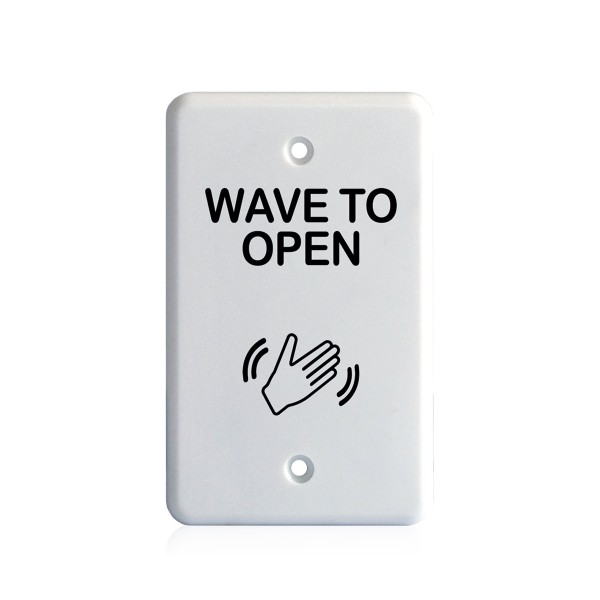

BEA MS31 Magic "Wave to Open" Single Gang Actuator Faceplate (Text & Logo, White) - 70-5839

Key Features:

• Touchless actuator designed for single-gang mounting with a "wave to open" gesture, eliminating the need for physical contact
• Detection zone is adjustable between 4" and 24" to accommodate different door depths and user approach zones
• Dipswitch settings allow selection of LED behavior either during detection or only upon activation for visual feedback
• The white faceplate displays both text and accessibility logo for clear designation with a clean finish
• Toggle mode allows one-time activation per wave and timer mode supports a hold time adjustable from 0.5 to 30 seconds

Specifications:

• Technology: Microwave Doppler radar operating at 24.125 GHz
• Detection Mode: Bidirectional motion sensing with adjustable range from 4" to 24"
• Output: Relay with switch-over contact rated for maximum 60 VDC or 125 VAC at 1 amp resistive
• Supply Voltage: 12 to 24 VAC ~10 percent or 12 to 24 VDC +30 / -10 percent
• Power Consumption: Less than 1.5 watts
• Mounting Option: Single-gang faceplate measuring 4 1/2" x 2 3/4" x 1/4" thick
• Material: Polycarbonate and polyethylene construction
• Protection Rating: IP54 for indoor or semi-protected outdoor use
• Operating Temperature Range: -4 F to +131 F (-20 C to +55 C)
