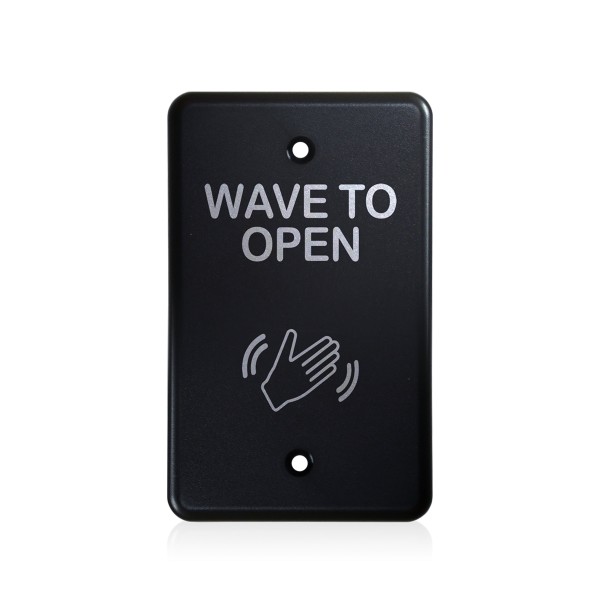

BEA MS31 Magic "Wave to Open" Single Gang Actuator Faceplate (Text & Logo, Black) - 70-5833

Key Features:

• Touchless actuator designed for single-gang mounting with a "wave to open" gesture, eliminating the need to physically push a button
• The detection zone is adjustable between 4" and 24", allowing for precise coverage of various doorway depths
• LED indicator settings are configurable via dipswitch to either illuminate during detection or remain off until activation
• The faceplate includes black text and a hand-wave logo
• The actuator supports both timed and toggle modes with a hold time adjustable between 0.5 and 30 seconds for flexible control of door operation

Specifications:

• Technology: Microwave Doppler radar operating at 24.125 GHz
• Detection Mode: Bidirectional motion sensing, adjustable detection range between 4" and 24"
• Output: Relay with switch-over contact, rated for a maximum of 60 VDC or 125 VAC at 1 amp resistive
• Supply Voltage: 12-24 VAC ~10 percent or 12-24 VDC +30 / -10 percent
• Power Consumption: Less than 1.5 watts
• Mounting Option: Single-gang faceplate with dimensions of 4 1/2" x 2 3/4" x 1/4" thick
• Material: Polycarbonate and polyethylene construction
• Operating Temperature Range: -4 F to +131 F (-20 C to +55 C)
• Protection Rating: IP54 for use in indoor and semi-protected outdoor zones
