Details

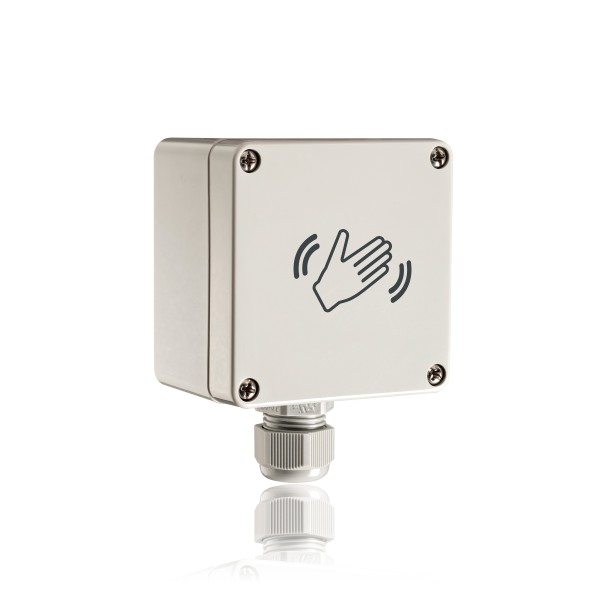

BEA MS09 Industrial Magic Wave to Open Actuator (Hand Logo Only, White) - 10MS09L

The BEA MS09 Industrial Magic Wave to Open Actuator is a contact-free door activation device that is ideal for industrial environments, both indoor and outdoor. This motion detector is capable of sensing moving objects such as a hand, forklift, cart, or pallet jack. The touchless design offers sterile practices for facilities that require germ-free door automation, such as hospitals. The BEA MS09's conduit connectivity allows for a watertight installation for harsh weather or wash-down facilities. The detection zone can be configured to best suit the needs of the environment in which the unit is being installed. The 10MS09L model features only a waving hand icon on the white enclosure.

Specifications:

• Color: White
• Dimensions: 3.15" x 3.23" x 2.165"
• Detection Technology: Microwave Doppler radar motion sensor
• Detection Range (adjustable): 4 to 24"
• Power Supply: 12 to 24 V AC ~10% or 12 to 24 V DC +30%/-10%
• Output Hold Time: 0.5s (in pulse mode)
• Relay Output: Form C relay 1 A max at 125 V AC / 60 V DC
• Power Consumption: < 1.5 W
• Operating Temperature: -4 degrees F to 131 degrees F (-20 degrees C to +55 degrees C)
• Enclosure Rating: IP65 / NEMA 4 rated
• Compliance: FCC and Industry Canada approved
