BEA MS09 Industrial Magic "Wave to Open" Actuator (Text & Hand Logo, White) - 10MS09TL

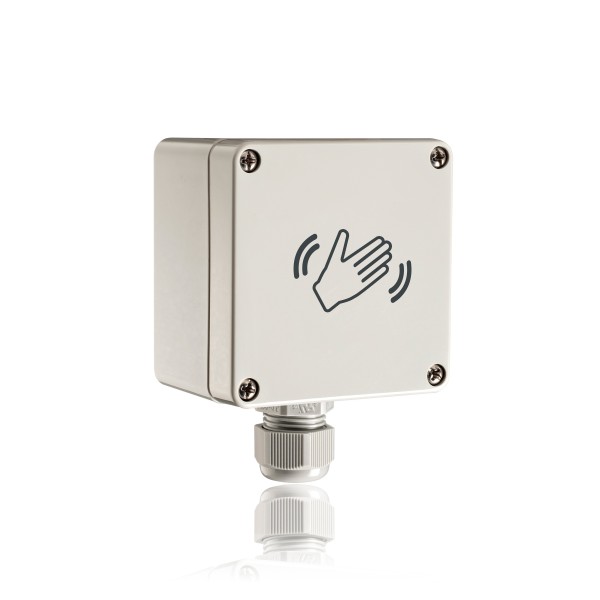

The BEA MS09 Industrial Magic "Wave to Open" Actuator is a touchless automatic door actuator that is specifically designed to withstand harsh environments for industrial facilities. These automatic door openers use microwave technology that can dependably detect motion for touch-free door activation. The BEA MS09 is ideal for hospitals, pharmacies, food service, or any building that may require sterile and reliable door automation. With an adjustable detection zone, these units can be configured to meet the needs of the environment they're being installed in. The 10MS09TL version includes "WAVE TO OPEN" text on the white faceplate along with an icon of a hand waving.

Specifications:

• Color: White
• Dimensions: 3.15" x 3.23" x 2.165"
• Detection Technology: Microwave Doppler radar motion sensor
• Detection Range (adjustable): 4 to 24"
• Power Supply: 12 to 24 V AC ~10% or 12 to 24 V DC +30%/-10%
• Output Hold Time: 0.5s (in pulse mode)
• Relay Output: Form C relay 1 A max at 125 V AC / 60 V DC
• Power Consumption: < 1.5 W
• Operating Temperature: -4 degrees F to 131 degrees F (-20 degrees C to +55 degrees C)
• Enclosure Rating: IP65 / NEMA 4 rated
• Compliance: FCC and Industry Canada approved
