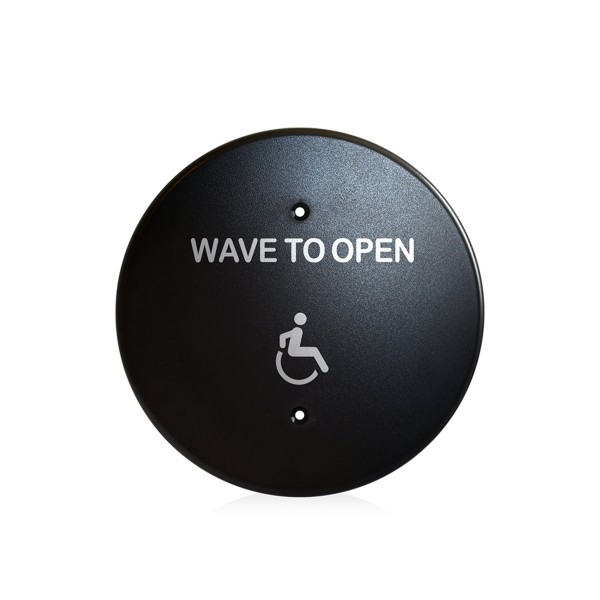

BEA 6" Round MS31 Magic Wave to Open Actuator Faceplate (Accessibility Logo Only, Black) - 70-5850

Key Features:

• 6-inch round touch-free actuator faceplate designed for contactless "wave to open" operation
• Adjustable detection field from 4" to 24" to accommodate different approach distances and environments
• Dip-switch control for LED illumination settings - continuous, activation-only, or off for flexible visual feedback
• Black faceplate design featuring only the accessibility logo
• Selectable timer and toggle modes allow activation duration adjustment from 0.5 to 30 seconds to match door timing needs

Specifications:

• Technology: Microwave Doppler Radar operating at 24.125 GHz
• Detection Mode: Bidirectional motion sensing with an adjustable range from 4" to 24"
• Output: Relay with switch-over contact rated for up to 60 VDC or 125 VAC at 1 amp resistive load
• Supply Voltage: 12 to 24 VAC ~10 percent or 12 to 24 VDC +30 / -10 percent
• Power Consumption: Less than 1.5 watts
• Mounting Option: 6-inch round faceplate, 1/4" thick, compatible with standard round mounting boxes
• Material: Polycarbonate and polyethylene construction
• Protection Rating: IP54 for indoor or semi-protected outdoor use
• Operating Temperature Range: -4 F to +131 F (-20 C to +55 C)
