Details

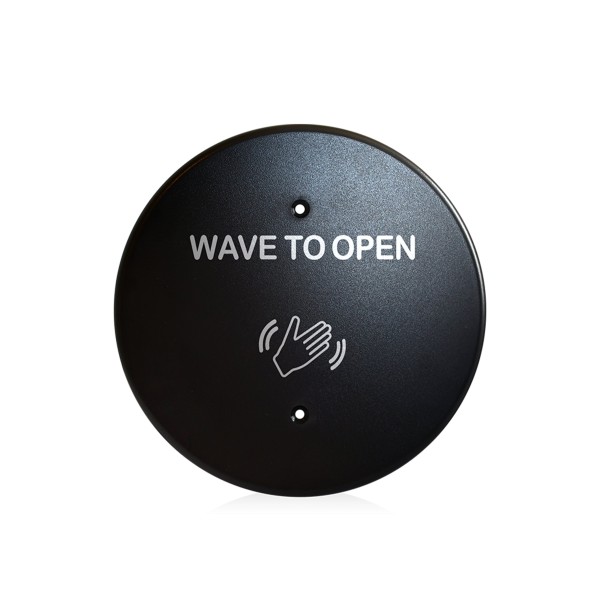

BEA 6" Round MS31 Magic "Wave to Open" Actuator Faceplate (Text & Logo, Black) - 70-5849

Key Features:

• 6-inch round "Wave to Open" actuator faceplate designed for touch-free door activation in hygienic areas
• Microwave Doppler radar technology detects hand motion from 4 to 24" away, allowing responsive activation without physical contact
• Selectable LED illumination modes provide clear user feedback - continuous, activation-only, or off
• The black faceplate includes both the "Wave to Open" text and accessibility logo for clear identification and ADA compliance
• Adjustable timer and toggle modes let users set activation hold time between 0.5 and 30 seconds to match specific door behavior requirements

Specifications:

• Technology: Microwave Doppler Radar operating at 24.125 GHz
• Detection Range: Adjustable from 4" to 24"
• Output: Relay with switch-over contact rated for up to 60 VDC or 125 VAC at 1 amp resistive load
• Supply Voltage: 12 to 24 VAC ~10 percent or 12 to 24 VDC +30 / -10 percent
• Power Consumption: Less than 1.5 watts
• Mounting Option: 6-inch round faceplate, 1/4" thick, compatible with standard round mounting boxes
• Material: Polycarbonate and polyethylene construction for faceplate and housing
• Protection Rating: IP54 for indoor or semi-protected outdoor use
• Operating Temperature Range: -4 F to +131 F (-20 C to +55 C)
