Details

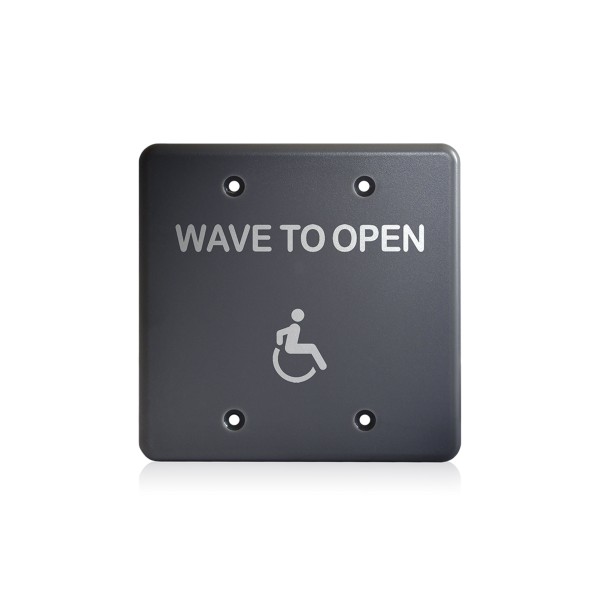

BEA MS31 Magic Wave to Open Double Gang Actuator Faceplate (Accessibility Logo Only, Gray) - 70-5845

Key Features:

• Touch-free actuator designed for double-gang faceplate use and triggered by a "wave to open" gesture for barrier-free access
• The detection zone can be adjusted between 4" and 24" to suit varying approach distances
• Dip-switch settings allow the LED to either remain on during detection or only light upon activation
• The gray faceplate features only the accessibility logo for a minimal, compliant presentation
• Toggle or timer mode provides either one-time activation per gesture or a hold-time adjustable from 0.5 to 30 seconds for extended opening

Specifications:

• Technology: Microwave Doppler Radar operating at 24.125 GHz
• Detection Mode: Bidirectional motion sensing with an adjustable range from 4" to 24"
• Output: Relay with switch-over contact rated for up to 60 V DC or 125 V AC at 1 amp resistive
• Supply Voltage: 12 to 24 V AC ~10 percent or 12 to 24 V DC +30 / -10 percent
• Power Consumption: Less than 1.5 watts
• Mounting Option: Double-gang faceplate with dimensions of 4 1/2" x 4 1/2" x 1/4" thick
• Material: Polycarbonate and polyethylene construction
• Protection Rating: IP54 for indoor or semi-protected outdoor use
• Operating Temperature Range: -4 F to +131 F (-20 C to +55 C)
