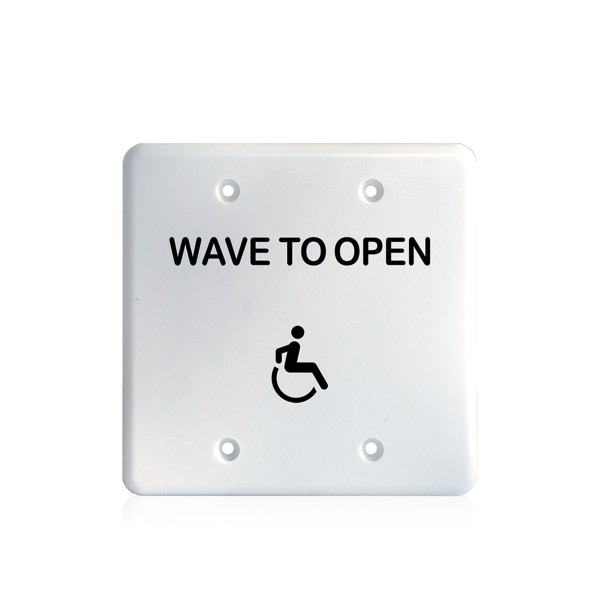

BEA MS31 Magic Wave to Open Double Gang Actuator Faceplate (Accessibility Logo Only, White) - 70-5848

Key Features:

• Touch-free actuator designed for double-gang mounting, activated by a simple "wave to open" gesture for contactless entry
• Adjustable detection zone between 4" and 24" allows customization to match various doorway setups and user approaches
• Dip-switch configuration enables control of LED lighting to either stay on during detection or illuminate only at activation
• The white faceplate includes only the accessibility logo, offering a compliant, and professional appearance
• Timer and toggle modes provide flexibility, with hold times adjustable from 0.5 to 30 seconds depending on entry requirements

Specifications:

• Technology: Microwave Doppler radar operating at 24.125 GHz
• Detection Mode: Bidirectional motion sensing with adjustable range from 4" to 24"
• Output: Relay with switch-over contact rated for up to 60 VDC or 125 VAC at 1 amp resistive
• Supply Voltage: 12 to 24 VAC ~10 percent or 12 to 24 VDC +30 / -10 percent
• Power Consumption: Less than 1.5 watts
• Mounting Option: Double-gang faceplate measuring 4 1/2" x 4 1/2" x 1/4" thick
• Material: Polycarbonate and polyethylene construction
• Protection Rating: IP54 for indoor or semi-protected outdoor use
• Operating Temperature Range: -4 F to +131 F (-20 C to +55 C)
