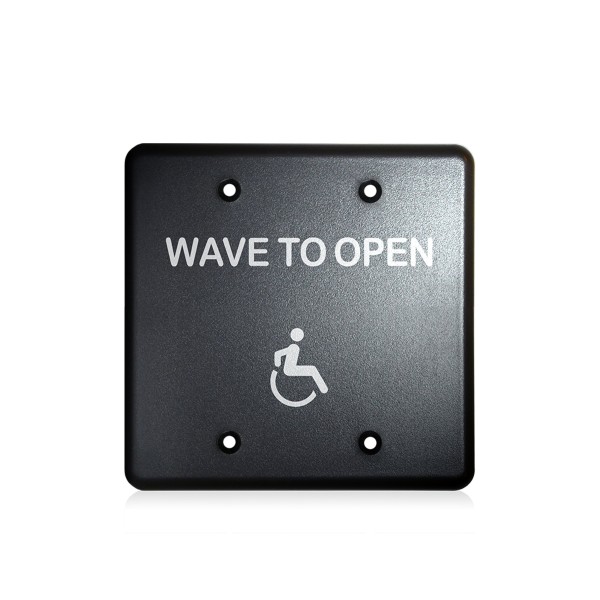

BEA MS31 Magic Wave to Open Double Gang Actuator Faceplate (Accessibility Logo Only, Black) - 70-5842

Key Features:

• Touch-free actuator designed for double-gang mounting with a "wave to open" gesture that supports hands-free operation
• Detection zone can be adjusted between 4" and 24" to cover varying door approaches and clearances
• Dip-switch settings offer control over LED behavior, choosing either illumination during detection or only upon activation
• Faceplate in black features only the accessibility logo, offering a clean and modern visual cue
• Selectable toggle or timer mode allows for activation per wave or hold time adjustable from 0.5 to 30 seconds for extended opening duration

Specifications:

• Technology: Microwave Doppler Radar operating at 24.125 GHz
• Detection Mode: Bidirectional motion sensing with an adjustable range from 4" to 24"
• Output: Relay with switch-over contact rated for up to 60 VDC or 125 VAC at 1 amp resistive
• Supply Voltage: 12 to 24 VAC ~10 % or 12 to 24 VDC +30 / -10 %
• Power Consumption: Less than 1.5 watts
• Mounting Option: Double-gang faceplate with dimensions of 4 1/2" x 4 1/2" x 1/4" thick
• Material: Polycarbonate and polyethylene construction for faceplate and sensor housing
• Protection Rating: IP54 for indoor or semi-protected outdoor environments
• Operating Temperature Range: -4 F to +131 F (-20 C to +55 C)
