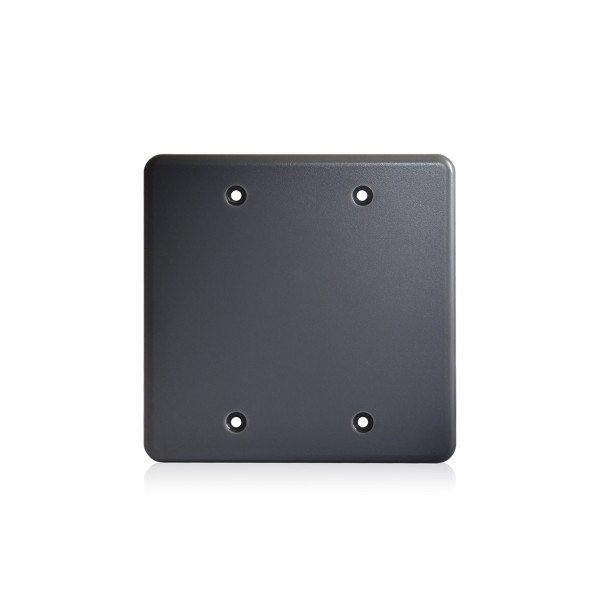

BEA MS31 Magic "Wave to Open" Double Gang Actuator Faceplate (Gray) - 70-5843

Key Features:

• Touch-free actuator designed for double-gang mounting and triggered by a "wave to open" gesture for contactless door activation
• Detection zone is adjustable between 4" and 24" to accommodate different approach distances and user movements
• Dip-switch settings allow the LED to either remain on during detection or only light upon activation for flexible feedback behavior
• Selectable toggle or timer mode enables one-time activation per wave or a hold time adjustable from 0.5 to 30 seconds for sustained door opening

Specifications:

• Technology: Microwave Doppler radar operating at 24.125 GHz
• Detection Mode: Bidirectional motion sensing with an adjustable range from 4" to 24"
• Output: Relay with switch-over contact rated up to 60 VDC or 125 VAC and 1 amp resistive
• Supply Voltage: 12 to 24 VAC ~10 percent or 12 to 24 VDC +30 / -10 percent
• Power Consumption: Less than 1.5 watts
• Mounting Option: Double-gang faceplate with dimensions of 4 1/2" x 4 1/2" x 1/4" thick
• Material: Polycarbonate and polyethylene construction overall
• Protection Rating: IP54 for indoor or semi-protected outdoor use
• Operating Temperature Range: -4 F to +131 F (-20 C to +55 C)
