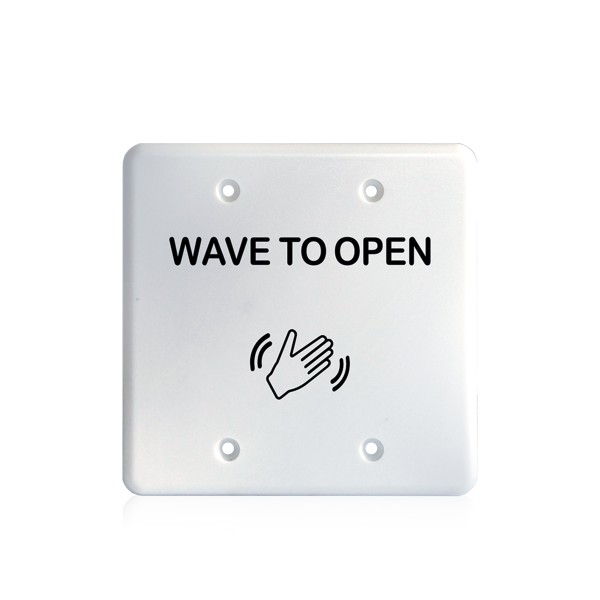

BEA MS31 Magic "Wave to Open" Double Gang Actuator Faceplate (Text & Logo, White) - 70-5847

Key Features:

• Touch-free actuator designed for double-gang mounting, activated by a simple "wave to open" gesture for contactless entry
• Detection field adjustable between 4" and 24" to fine-tune activation distance for different door configurations
• Dip-switch settings allow the LED indicator to operate continuously during detection or only illuminate at activation
• The white faceplate includes both the "Wave to Open" text and accessibility logo, offering clear, compliant identification
• Selectable toggle or timer modes provide flexibility, with hold time adjustable between 0.5 and 30 seconds depending on usage needs

Specifications:

• Technology: Microwave Doppler Radar operating at 24.125 GHz
• Detection Mode: Bidirectional motion sensing with an adjustable range from 4" to 24"
• Output: Relay with switch-over contact rated for up to 60 VDC or 125 VAC at 1 amp resistive load
• Supply Voltage: 12 to 24 VAC ~10 percent or 12 to 24 VDC +30 / -10 percent
• Power Consumption: Less than 1.5 watts
• Mounting Option: Double-gang faceplate measuring 4 1/2" x 4 1/2" x 1/4" thick
• Material: Polycarbonate and polyethylene construction for faceplate and housing
• Protection Rating: IP54 for indoor or semi-protected outdoor environments
• Operating Temperature Range: -4 F to +131 F (-20 C to +55 C)
