Details

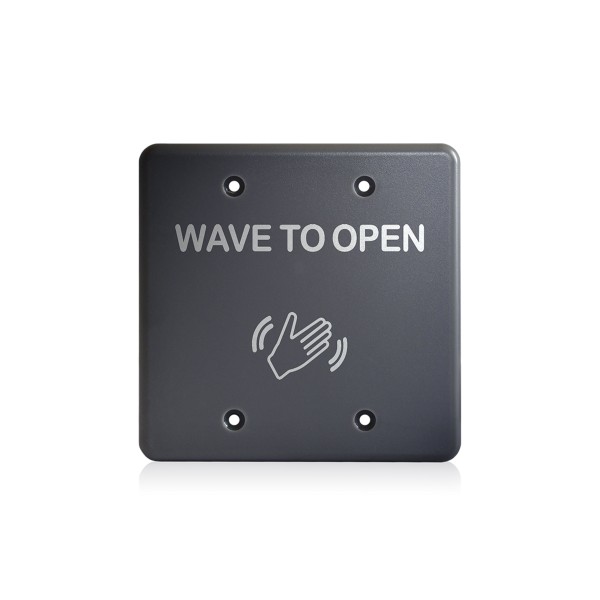

BEA MS31 Magic "Wave to Open" Double Gang Actuator Faceplate (Text & Logo, Gray) - 70-5844

Key Features:

• Touch-free actuator designed for double-gang faceplate use and triggered by a "wave to open" gesture for barrier-free access
• Detection zone is adjustable between 4" and 24", providing flexibility in approach distance for users or carts
• Dip-switch selectable LED modes allow setting the indicator to remain on during detection or to stay off until activation
• Faceplate features a gray finish with both text and accessibility logo included, offering a clean and compliant visual presentation
• Selectable toggle or timer operation enables one-time activation per gesture or a hold time adjustable from 0.5 to 30 seconds for sustained opening

Specifications:

• Technology: Microwave Doppler radar operating at 24.125 GHz
• Detection Mode: Motion sensing (bidirectional) with an adjustable range from 4" to 24"
• Output: Relay with switch-over contact rated up to 60 V DC or 125 V AC at 1 amp resistive load
• Supply Voltage: 12 to 24 V AC ~10 percent or 12 to 24 V DC +30 / -10 percent
• Power Consumption: Less than 1.5 watts
• Mounting Option: Double-gang faceplate measuring 4 1/2" x 4 1/2" x 1/4" thick
• Material: Polycarbonate and polyethylene construction for the sensor and faceplate housing
• Protection Rating: IP54 for use in indoor or semi-protected outdoor settings
• Operating Temperature Range: -4 F to +131 F (-20 C to +55 C)
