Details

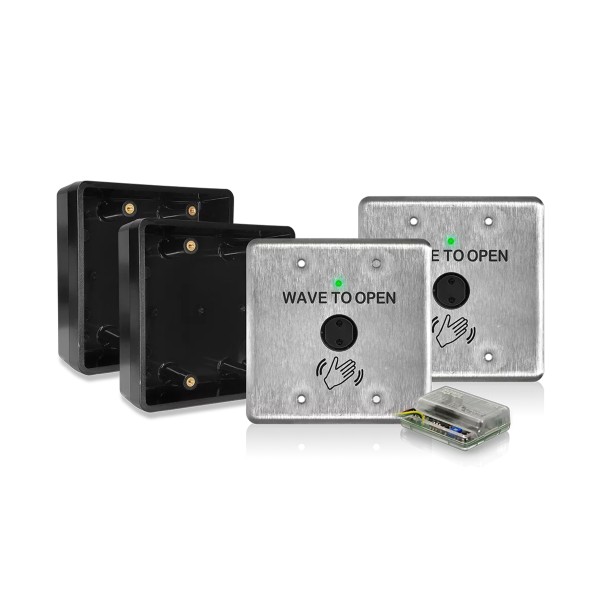

BEA MS51 Wireless Double Gang Kit (Includes Sensors & Receiver) - 10MS51W-DKIT

Key Features:

• Complete wireless activation package including two MS51W touchless double gang sensors and one 900 MHz receiver
• Active infrared detection provides reliable Wave to Open functionality without physical contact
• Pre paired wireless transmitters and receiver simplify setup and reduce installation time
• Operates at 900 MHz using digital frequency hopping technology for strong and interference free signal transmission
• Each sensor runs on battery power and delivers up to three years of performance under typical use
• Adjustable detection range from 6 to 12 inches allows for flexible activation distances
• IP65 rated housing for use in both indoor and outdoor environments
• Ideal for retrofits, hospitals, clean rooms, and other areas requiring hygienic entry solutions

Specifications:

• Technology: Active infrared motion detection
• Frequency: 900 MHz digital wireless communication
• Detection Range: Adjustable between 6 and 12 inches
• Power Supply: 3 VDC (two AA batteries per sensor)
• Power Consumption: Less than 0.5 mW idle, less than 25 mW during transmission
• Operating Temperature: -22 F to 158 F (-30 C to 70 C)
• Enclosure Rating: IP65 weather resistant design
• Dimensions (Sensor): 4.5 inches height x 4.5 inches width x 1.25 inches depth
• Receiver Power: 12 to 24 VAC/DC, single channel output
• Material: 304 stainless steel faceplate with polycarbonate sensor lens
