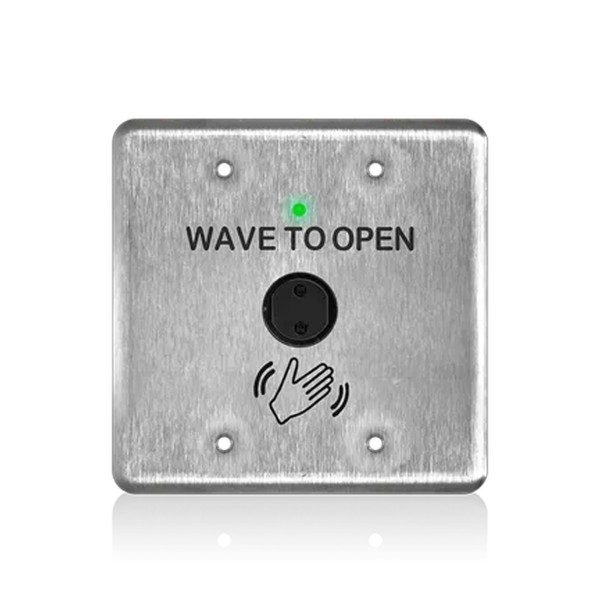

BEA 900MHz MS51W Wireless Wave to Open Double Gang Actuator (Logo Only) - 10MS51W-D

Key Features:

• Wireless touchless actuator from the MS51W series featuring a double gang stainless steel faceplate with accessibility logo only
• Built in 900 MHz digital transmitter removes the need for wiring, offering flexible installation in retrofit or new build applications
• Active infrared dual sensor detection ensures reliable Wave to Open activation without physical contact
• Up to three years of battery powered operation when set to short range mode, reducing maintenance frequency
• Select immunity modes reduce false triggers caused by sun, rain, or spray in demanding environments

Specifications:

• Technology: Active infrared motion detection with two sensors
• Radio Frequency: 900 MHz digital frequency hopping (908 to 918 MHz), transmitter power -25 dBm
• Detection Range: Up to 12 inches in long range mode or 6 inches in short range mode
• Power Supply: 3 VDC using two AA batteries
• Power Consumption: Less than 0.5 mW idle, less than 25 mW during radio transmission
• Operating Temperature: -22 F to 158 F (-30 C to 70 C)
• Enclosure Rating: IP65
• Dimensions: 4.5 inches wide by 4.5 inches high by 1.25 inches deep
• Material: 304 stainless steel faceplate with polycarbonate sensor housing
