BEA Phoenix EX Wide-Field Explosion-Proof Sensor with Tamper Alert & 100ft Harness - 10PHOENIXEXW-IT100
Details
BEA Phoenix EX Wide-Field Explosion-Proof Sensor with Tamper Alert & 100ft Harness - 10PHOENIXEXW-IT100

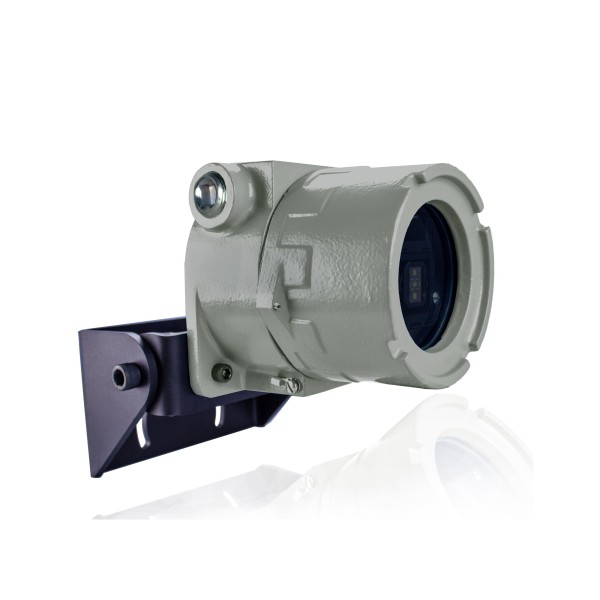

Introducing the BEA Phoenix EX Motion Sensor, which combines BEA's industry-leading microwave motion detection sensor with explosion and flame-proof housing, making it ideal for applications like military facilities, chemical plants, compressor stations, and maintenance facilities. Designed with a wide detection field of 30’ × 11’ @ 21’, this sensor effectively allows you to look at a large area and alerts to security or intruder activity within seconds. Created with an integrated tamper alert switch that will automatically send an alert signal if the cover is unscrewed.
Key Features:
- Transmitter Frequency: 24.150 GHz
- Transmitter Radiated Power: < 20 dBm EIRP
- Mounting Height: 11.5 − 21 ft
- Transmitter Power Density: < 5 mW/cm2
- Detection Zone: 30 x 11 ft @ 21 ft
- Materials: Copper-Free Aluminum (Housing); Powder-Coated Steel (Bracket)
- Mains Frequency: 50 − 60 Hz
- Detection Speed: 2 in/s*
- Cable Length:100 ft
- Housing Certification: UL Class I, Div. 1, Groups B, C, D; Class II, Div. 1 & 2, Groups E, F, G; and Class III***
SKU | 10PHOENIXEXW-IT100 |
---|---|
Alternative SKU | 10PHOENIXEXW.IT100 |
Color | Gray |
Product Type | Sensor |
Manufacturer | BEA Industrial |
Specification Sheet | Download PDF file |
Information Sheet | Download PDF file |
Manual | Download PDF file |
Installation Guide | Download PDF file |
